FRAME PREPARATIONS

    Hinge Preparations – Standard

    Please refer to the Hinge template for size and screw locations. Hinge backsets are fixed and cannot be changed. If ordering Timely frames prepared for other manufacturers’ vertical hinge locations, hinge backset on door must conform to hinge backset on frame.

    Example: _35 235 2 ea. 3 1/2" hinges
    335 3 ea. 3 1/2" hinges
    435 4 ea. 3 1/2" hinges
    classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit
    Hinge
    Size
    Timely’s
    Code
    Radius Depth Screw
    Pattern
    Electric Hinge
    Option
    Templates
    S C A CK AK DE P 1 3/8" 1 3/4"
    3 1/2" _35 1/4" .100 Template YES YES H-01
    _35HW 1/4" .123 Template YES YES H-02
    _35R 5/8" .100 Template YES YES H-03
    4" _40 1/4" .120 Template YES YES YES YES YES YES H-05
    _40 MS-A 5/8" .090 Non-Template YES YES YES YES YES YES H-09
    _40 MS-DD* 5/8" .180 Non-Template YES YES YES YES YES YES H-09DD
    4 1/2" _45 sq. .134 Template YES YES YES YES YES YES YES H-15
    _45HW sq. .180 Template YES YES YES YES H-16
    5" _50 sq. .145 Template YES YES YES YES YES YES H-20
    _50HW sq. .190 Template YES YES YES YES YES H_21

    *double depth emboss

    Hinge Preparations – Continuous

    This preparation is a Reinforcement Only.

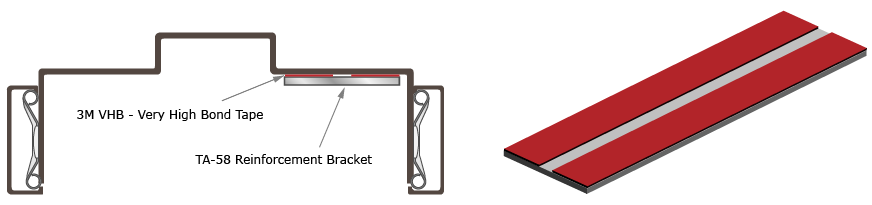

    Timely’s TA-58 Reinforcement Bracket is factory applied
    to the back side of the frame to provide a strong anchor for
    the continuous hinge of your choosing.



    classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit
    Timely’s
    Code
    Electric Hinge
    Option
    Series Arrow
    S C A CK AK DE P
    Continuous CONT YES Series Arrow YES YES YES YES YES YES
    Illustration for Timely Frames using the 3M VHB Tape

    View this video to learn about 3M’s VHB tape’s amazing strength

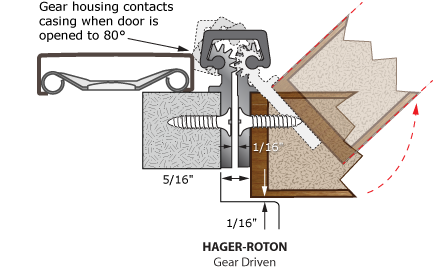

    Illustration for Timely Frames using the 3M VHB Tape When using gear driven continuous hinges, a wide throw hinge
    must be used to avoid conflict between the gear housing and
    the casing. Standard throw gear driven hinges will contact
    the casing when the door is open approximately 80°.

    Hinge Preparations – Double Acting Spring Hinge

    Graphic for Double Acting Tab'

    Double Acting Hinges are attached to a cased opening jamb using standard machine screws.

    In this installation, a TA-25 is jobsite applied to the center of the frame on the back side prior to installation on the wall. Once the frame is installed, the hinge screw holes are located and then drilled and tapped for machine screw threads. The door is mounted to the hinge flange and tested for proper operation. The door must be sized appropriately or the strike stile must have a radius to provide necessary clearance. Once the door is operating as required, the hinge springs are tightened using a tension bar to provide the necessary closing force.

    Hinge Preparations – Pivots

    “Cut and weld-in reinforcements”

    classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit
    Timely’s
    Code
    Pivots Style Electric Hinge
    Option
    Series Arrow Templates
    S C A CK AK DE P 1 3/8" 1 3/4"
    OTP Offset Top Template Series Arrow YES per mfgr. template
    OIP Offset Intermediate Template YES YES YES per mfgr. template
    OBP Offset Bottom Template YES YES per mfgr. template
    CTP Center Hung Top Template YES YES per mfgr. template
    CPB Center Hung Bottom Template YES YES per mfgr. template

    Hinge Preparations – Why they are so strong



    TIMELY HINGE PREPARATION
    • Extruded Screw holes
    • Rolled threads instead of traditional tapping
    • 0.224" Depth of thread capture
    • No welds to fail – 100 % performance guarantee over the life of the building
    • Embossed instead of cutting out metal – frame material is sandwiched between the hinge and reinforcement bracket for maximum strength



    HOLLOW METAL HINGE PREPARATION
    • Screw holes drilled in 10 ga. (0.134") steel reinforcement plate
    • Threads tapped with traditional tapping machinery
    • 0.134" Depth of thread capture (same as thickness of reinforcement)
    • 6 spot welds are the only connection between the reinforcement plate and frame
    • Failure of welds cause total failure of opening
