STRENGTH


PERFORMANCE:
Timely 20 gauge steel frames have been tested and proven to outperform 16 gauge hollow metal frames. Certified test results prove that the engineered anchoring system using 40 or more fasteners allows the lighter gauge frame to withstand far greater forces than hollow metal frames which have only six anchor points to the wall.


TOTAL DOOR WEIGHT LATERAL IMPACT (TWIST) SECURITY (SPREAD TEST)
Weight added to door until door
closing was impaired
Force applied to frame until frame,
anchors, or fasteners dislodged
Force applied to frame stops – failure point occurred when door opened with latch bolt extended

COMPARISON OF TIMELY 20 GAUGE FRAME TO HOLLOW METAL
16 GAUGE FRAME IN DRYWALL PARTITION

    TIMELY 20 Gauge HOLLOW METAL 16 Gauge
Static Load   500 lbs. 228 lbs.

 Simulates Total Door Weight



*The limit on the scale used was 500 pounds. Subsequent testing showed a total door weight of 730 pounds before failure


Twist from wall     200 lbs. 200 lbs.
 Simulates anchor failure force

Forced Entry   565 lbs. 420 lbs.
 Force to spread jambs to release latch

40 Anchor Points Around Perimeter of Timely Frames

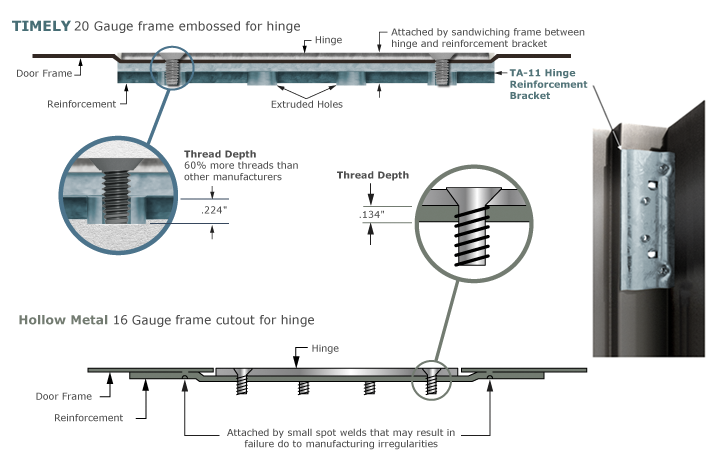

HINGE REINFORCEMENT – TIMELY VS HOLLOW METAL
TA-11 Hinge Reinforcement Bracket
