POCKET DOOR TRIM KIT (P-SERIES) SINGLE

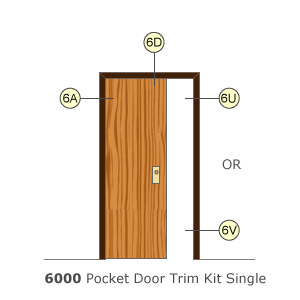

Timely Door Frames Pocket Door Trim Kit Single Drawing

    POCKET DOOR TRIM KIT (P-Series) – Single | Related Information

    POCKET DOOR TRIM KIT (P-Series) – Single | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Classic Single/Dutch - Rough Opening
    WIDTH

    The rough opening for pocket doors is actually created by the pocket frame system used. The Timely P series trim kit is designed to fit most common applications. In some cases, wood pocket frames are used that include a 3/4" strike jamb piece the full width of the wall. Since the Timely pocket trim kit is designed to replace this component, there will be a conflict when using this type of frame. Instead of recommending a rough opening size, we give guidelines that will accommodate standard sizes of trim kits.

    Kit width is the nominal door width less 1/2" for standard stop and 1" less for inverted stop.
    ROUGH OPENING RANGE: STANDARD JAMB
    Minimum – Nominal Door width plus 1/2"
    Maximum – Nominal Door width plus 1 1/2"
    ROUGH OPENING RANGE: INVERTED STOP JAMB
    Minimum – Nominal Door width plus 1"
    Maximum – Nominal Door width plus 1 1/2"

    HEIGHT

    We provide our standard height frame which is 3/16" longer than the nominal door height. In most cases, a full height door panel is used since the top of the door is mounted above the header trim piece. The rough opening height is determined by the pocket frame and the door height can be adjusted or, if necessary, the door can be cut to clear flooring material.

    Timely Standard Height – 3/16" over nominal height
    ROUGH OPENING: Determined by the pocket frame being use
    Download Pocket Door Trim Kit – Single | Rough Opening image


    POCKET DOOR TRIM KIT (P-Series) – Single | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    POCKET DOOR TRIM KIT (P-Series) – Single | Color Options


    STANDARD
    FINISHES
      PRE-MATCHED CUSTOM FINISHES Navajo white Chip   Winter White Chip   White white Chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    Browntone Chip White Smoke Chip

      bone china Chip   Navajo white Chip   Snow white Chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    Autumn Brown Chip Charcoal Chip   Cape Cod Chip   Neutral Gray Chip   Nickel Chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    Black Chip driftwood Chip   Sandy Beach Chip   Cameo Beige Chip   Thunder Chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Gray Chip Black Bean Chip   Urban Bronze Chip   Navajo white Chip   Coacoa Chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBANE BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    Western white Chip Doeskin Chip   Harvest Moon Chip   Cordovan Chip   Ruby Red Chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOON
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip Pacific Blue Chip   Twilight Chip   Jade Chip   Kentucky Grass Chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    Primer Chip
    Ocean Spray Chip   Malubu Green Chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY
    (CC901)
      MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


      NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified.  Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department.  Colors & price subject to change.



     POCKET DOOR KIT (P-Series) | Frame ProfilesIcon P Series Large

    Click to enlarge drawings

    P-SERIES 18 GAUGE
    1 3/8" Door Available in both door sizes 1 3/4" Door

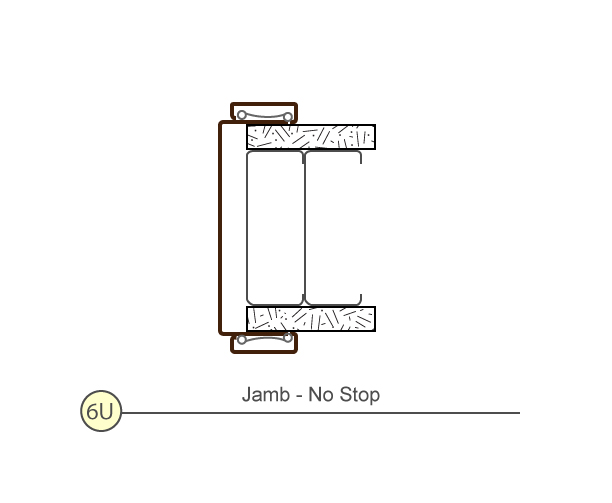

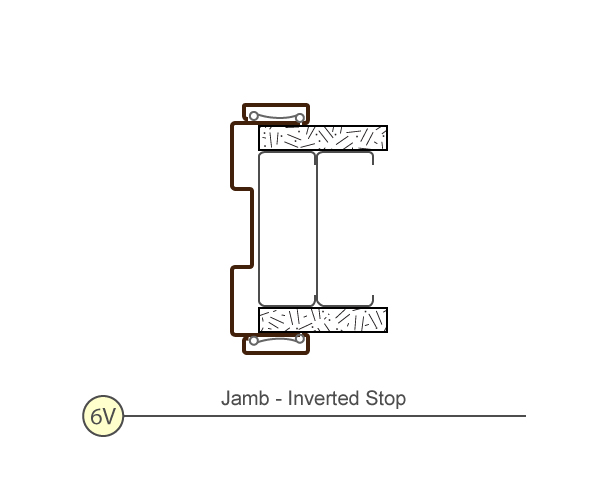

    Pocket Door Trim Kit - Frame Profile (P) Pocket Door Trim Kit - Frame Profile (Q)
    Pocket Door Trim Kit - Frame Profile (R) Pocket Door Trim Kit - Frame Profile (E No Stop) Pocket Door Trim Kit - Frame Profile (S)
    Note: Profiles are shown with TA-8 Casing for example only.

    * The door is always centered in the wall framing, not the center of the wall. This dimension is only equal if the thickness of drywall is equal on both sides of wall. For example if 5/8" drywall is used on both sides of the wall. The dimension is NOT equal if 5/8" is used on the first side of the wall and 5/8" + 1/2" is used on the second side.

    POCKET DOOR TRIM KIT (P-Series) – Single | Elevations

    Click to enlarge drawings




    POCKET DOOR TRIM KIT (P-Series) – Single | Details

    Click to enlarge drawings

    POCKET DOOR TRIM KIT (P -Series) – Single


    PDF Image Thumb Pocket Door Trim Kit - Single Download File in Adobe Acrobat Format PDF DOWNLOAD Pocket Door Trim Kit – Single.pdf
    To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
