DORMITORIES

  • Uniformity of all interior doors and frames – including stairwells and double egress frames
  • Economical solution without sacrificing performance or quality
  • Ideal for steel stud framing – eliminates wood blocking required when using pre-hung frames
  • More durable than traditional wood frames without adding considerable cost
  • Increased security vs wood frames



Uses Photo for Dormitories series arrow classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit
Frequency S C A CK AK DE P
Common Areas Main Entrance H
Secondary Entrance M
Corridor Offices M O O O P
Restrooms M O O O P
Laundry M O O O P
Pool M O O O P
Exercise M O O O P
Maintenance L O O O P
Meeting Rooms L O O O P
Interior Offices L P O O O
Secure Storage L P O
Mech./Elect L O O P
Stairwell L O P
Corridors – Dbl. Egress L P
Rooms Entry M O O P
Bath L P O O
Furnace L P O
Bedroom L P O O
Closet SS/PR L P O O
Closet Bi-pass L P
Closet Bi-fold L P O
Pocket L P

Use of Frame: P = Preferred O = Optional = not recommended
Frequency: H = High M = Medium L = Low


ACCESSORY HARDWARE

TA-10 Regular Arm Closer Reinforcement – Can be used on all Frames
TA-12 Parallel Arm Closer Reinforcement – Classic Frames only
TA-47 Parallel Arm Closer Reinforcement – Kerf Frames only



Download CSI Format Specifications
Print Dormitories PDF

Classic Frame S C

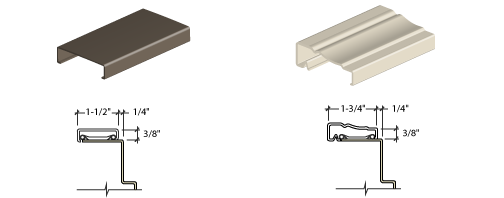

Drawing for S, C Series Door Frames
S-Series
(20 gauge)

General use for all interior openings.

Minimum Jamb Depth – 2 5/8"

Maximum Jamb Depth – 5 3/8"

Fire Rating – 90 Minute (Minimum Jamb Depth 3 3/8" for rating)

Maximum Door Weight – 500 lbs.

C-Series
(18 gauge)

General use for all interior openings requiring additional strength and impact resistance of 18 gauge steel.

Minimum Jamb Depth – 2 5/8"

Maximum Jamb Depth – 13"

Fire Rating – 90 Minute (Minimum Jamb Depth 3 3/8" for rating)

Maximum Door Weight – 500 lbs.

Adjustable Frame A

Drawing for S, C Series Door Frames
A-Series
(18 gauge)

Use for interior openings with uneven or odd sized walls requiring non-stock wall size. Adjustable jamb thickness makes this frame Ideal for remodel projects.

Minimum Jamb Depth – 3 3/4"

Maximum Jamb Depth – 9 1/8"

Fire Rating – 90 Minute

Maximum Door Weight – 500 lbs.

Kerfed Frame CK

Drawing for S, C Series Door Frames
CK-Series
(18 gauge)

Use for interior and exterior openings requiring a seal against smoke, sound, weather, and light. Kerfed stop with factory installed seal.

Minimum Jamb Depth – 4"

Maximum Jamb Depth – 8"

Fire Rating – 90 Minute

Maximum Door Weight – 500 lbs.

Double Egress Frame DE

Drawing for S, C Series Door Frames
DE-Series
(18 gauge)

Use for cross corridor fire separation where doors are held open during normal use.

Minimum Jamb Depth – 4 3/4"

Maximum Jamb Depth – 10 3/4"

Fire Rating – 90 Minute

Maximum Door Weight – 250 lbs.

Pocket Trim P

Drawing for S, C Series Door Frames
P-Series

(18 gauge)

Use to trim out pocket doors so they have the same appearance as other frames for the project.

Minimum Jamb Depth – 4"

Maximum Jamb Depth – 13"

Fire Rating – none

Maximum Door Weight – N/A
