CLASSIC FRAME (S-Series & C-Series) PAIR ACCESS

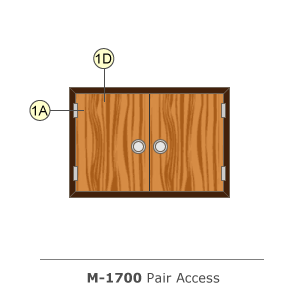

Timely Door Frames Classic Series Pair Access Drawing

    CLASSIC FRAME (S-Series & C-Series) – Pair Access | Related Information

    CLASSIC FRAME (S-Series & C-Series) – Pair Access | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Classic Single Access - Rough Opening
    WIDTH

    For a Pair access door frame, the rough opening width is 1 1/4" larger than the total of the nominal door widths.

    Width is total nominal door widths plus astragal between doors (if used)
    ROUGH OPENING: Nominal Door widths + 1 1/4"

    HEIGHT

    For Pair access door, the rough opening height is 1 1/4″ larger than the nominal door height.


    Height is the inside dimension of the frame
    ROUGH OPENING: Door height + 1 1/4"
    Download Classic – Pair Access | Rough Opening image


    CLASSIC FRAME (S-Series & C-Series) – Pair Access | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    CLASSIC FRAME (S-Series & C-Series) – Pair Access | Color Options


    STANDARD FINISHES PRE-MATCHED CUSTOM FINISHES navaho White chip   winter White chip   white White chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    browntone chip white Smoke chip

      bone China chip   designer White chip   designer White chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    autumn Brown chip charcol chip   Cape Cod Grey chip   neutral Grey chip   Nickel chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    black chip drift Wood chip   sandy Beach chip   cameo Beige-chip   cozy Peach chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Grey chip brown Sugar chip   cocoa chip   doe Skin chip   harvest Mood chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBAN BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    western White chip doe Skin chip   ruby Red chip   cordovian chip   ruby Red chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOOD
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip pacific Blue chip   Twilight chip   country Blue chip   jade chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    alumatone Chip
    kentucky Grass chip   malibu Green chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY (CC901)   MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


      NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified.  Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department.  Colors & price subject to change.



    CLASSIC FRAME (S-Series) | Frame Profiles Icon S Series Large

    Click to enlarge drawings

    S-Series 20 gauge CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door

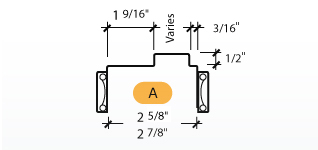

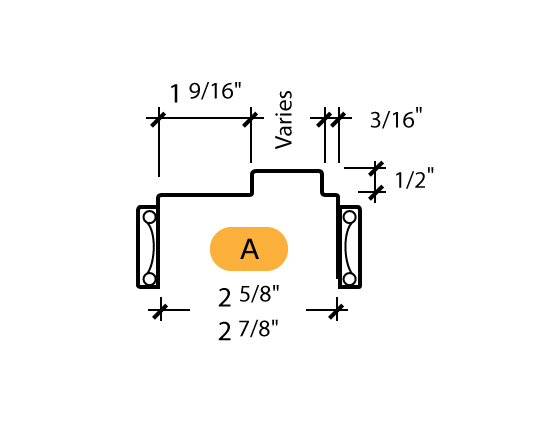

    Classic S-Series Frame Profile (A) Minimum order quantity of 100
    frames for Profiles A and G.

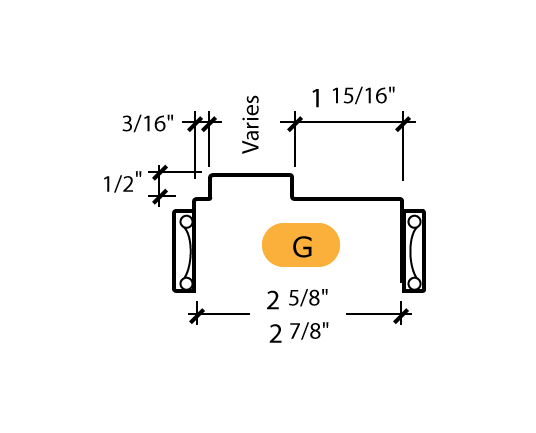

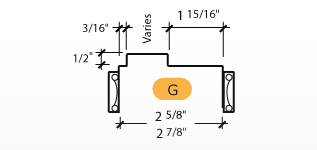

    Classic S-Series Frame Profile (G)
    Classic S-Series Frame Profile (C) Classic S-Series Frame Profile (F) Classic S-Series Frame Profile (J)
    S-series Footer

    CLASSIC FRAME (C-Series) | Frame Profiles Icon C Series Large

    Click to enlarge drawings

    C-Series 18 gauge CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic C-Series Frame Profile (A) Classic C-Series Frame Profile Classic C-Series Frame Profile (G)
    Classic C-Series Frame Profile (B) Classic C-Series Frame Profile (E) Classic C-Series Frame Profile (H)
    Classic C-Series Frame Profile (C) Classic C-Series Frame Profile (F) Classic C-Series Frame Profile (J)
    Classic C-Series Frame Profile (CC) Classic C-Series Frame Profile (FF) Classic C-Series Frame Profile (JJ)
    Classic C-Series Frame Profile (CE) Classic C-Series Frame Profile (FE) Classic C-Series Frame Profile (JE)
    Classic C-Series Frame Profile (D) Classic C-Series Frame Profile (channel section) Classic C-Series Frame Profile (K)
    Classic C-Series Frame Profile (EE)
    FX  3 ¾" FACE HEADER — Use with sub frame for CMU Application
    EX  3 ¾" FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation
    FXi  3 ¾" FACE INSERT — Use for sub frame at head with standard frame in CMU
    Classic C-Series Frame Profile (Fex) Classic C-Series Frame Profile (Eex) Classic C-Series Frame Profile (Eexi)
    GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.
    Classic C-Series Frame Profile (Mullion w/Glazing) Classic C-Series Frame Profile (Frame w/Stop and Glazing)) Classic C-Series Frame Profile (Mullion w/Glazing No Stop)

    NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, or F.    2. 4" Sidelights are only avaliable in Profiles E or G.     3. Profiles are shown with TA-8 Casing for example only.


    CLASSIC FRAME (S-Series & C-Series) – Pair Access | Elevations

    Click to enlarge drawings

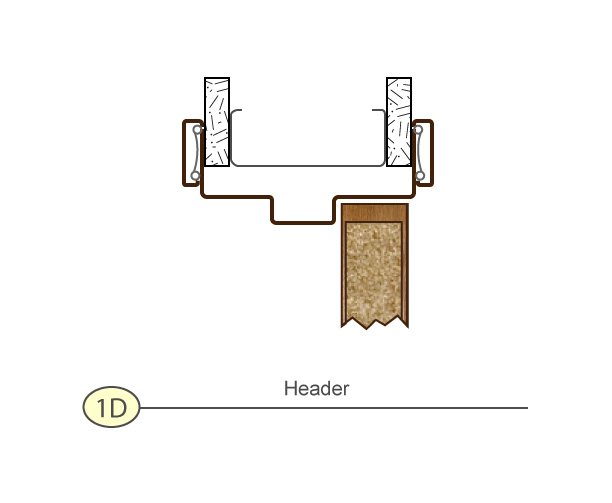

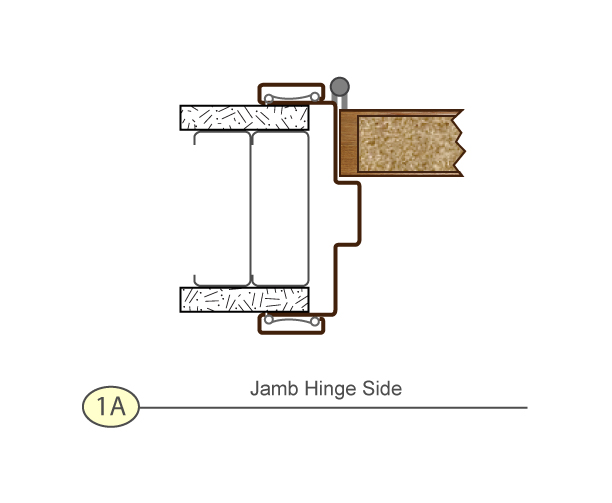

    CLASSIC FRAME (S-Series & C-Series) – Pair Access | Details

    Click to enlarge drawings

    CLASSIC FRAME (S-Series & C-Series) – Pair Access

    PDF Image Thumb Classic Pair Access Download File in Adobe Acrobat Format PDF DOWNLOAD Classic Pair Access.pdf  To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
