CLASSIC FRAME (S-SERIES & C-SERIES) SINGLE WITH TRANSOM
Classic Single with Transom

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Related Information

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Fire Rating

    Icon for Fire Rating FIRE RATING DOOR AREA

    JAMB DEPTH RANGE 45 MINUTE GENERAL INFORMATION
    Min. Jamb Depth:

    3 3/8"



    Max. Jamb Depth:

    13' – 0"



    dimension bracketWidth:

    up to 4' – 0"



    Max. Height:

    9' – 0"

    1. All openings are approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, woodstud, or masonry construction.
    3. all ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Aluminum casing does not affect fire rating. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Single frames must be prepared for strike plate or reinforced with (TA-12) for a rim exit.
    7. Embossed WHI 90 min. label is available for Primed Frames only.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.

    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.



    Icon for Fire Rating 45 MINUTE FIRE RATING TRANSOM AREA

    ASSEMBLY GLASS AREA* GENERAL INFORMATION
    Max. Width:

    9' – 7"



    Max. Height:

    9' – 11"





    dimension bracketWidth:

    up to 2'



    Max. Height:

    8' – 11"

    dimension bracketWidth:

    over 2' up to 3' **



    Max. Height:

    4' – 6" **

    1. All openings are approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, woodstud, or masonry construction.
    3. all ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Aluminum casing does not affect fire rating. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    Visible light is 1" less in width and height

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    * Multiple Glass Areas can be created with Mullions. The only limitations are Maximum Assembly Width and Height.

    ** For glass widths exceding 24" the maximum glass area is 1296 sq. in. unless approved by local AHJ.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Rough Openings

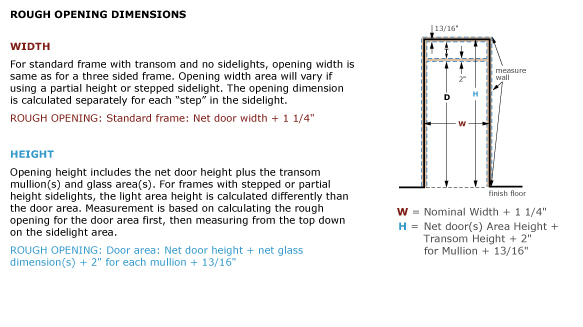

    DOOR FRAMES WITH TRANSOM(S) WITH OR WITHOUT SIDELIGHTS Rough Opening Classic Single/Dutch
    WIDTH

    For standard frame with transom and no sidelights, opening width is same as for a three sided frame. Opening width area will vary if using a partial height or stepped sidelight. The opening dimension is calculated separately for each “step” in the sidelight.

    ROUGH OPENING WIDTH: Standard frame: Net door width + 1 1/4"
    HEIGHT

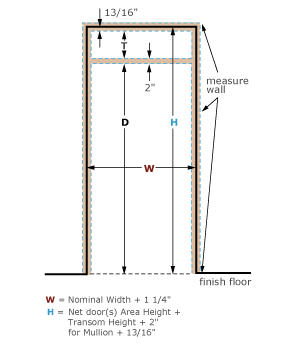

    The rough opening height (H) is the net door area height (D) plus transom height (T) plus 2" for the transom mullion plus 13/16" for adjustment.

    ROUGH OPENING HEIGHT: Rough opening height (H) is the net door area height (D) plus transom height (T) plus 2" for the transom mullion plus 13/16" for adjustment.
    Download Classic – Single with Transom | Rough Opening image


    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame. Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Color Options


    STANDARD
    FINISHES
      PRE-MATCHED CUSTOM FINISHES Navajo white Chip   Winter White Chip   White white Chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    Browntone Chip White Smoke Chip

      bone china Chip   Navajo white Chip   Snow white Chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    Autumn Brown Chip Charcoal Chip   Cape Cod Chip   Neutral Gray Chip   Nickel Chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    Black Chip driftwood Chip   Sandy Beach Chip   Cameo Beige Chip   Thunder Chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Gray Chip Black Bean Chip   Urban Bronze Chip   Navajo white Chip   Coacoa Chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBANE BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    Western white Chip Doeskin Chip   Harvest Moon Chip   Cordovan Chip   Ruby Red Chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOON
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip Pacific Blue Chip   Twilight Chip   Jade Chip   Kentucky Grass Chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    Primer Chip
    Ocean Spray Chip   Malubu Green Chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY
    (CC901)
      MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


      NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.



    CLASSIC FRAME (S-Series) | Frame ProfilesIcon S Series Large

    Click to enlarge drawings

    S-Series 20 GAUGE
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic S-Series Frame Profile (A) Minimum order quantity of 100 frames for Profiles A and G. Classic S-Series Frame Profile (G)
    Classic S-Series Frame Profile (F)
    S-series Footer

    CLASSIC FRAME (C-Series) | Frame ProfilesIcon C Series Large

    Click to enlarge drawings

    C-Series 18 GAUGE
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic C-Series Frame Profile (A) Classic C-Series Frame Profile Classic C-Series Frame Profile (G)
    Classic C-Series Frame Profile (B) Classic C-Series Frame Profile (E) Classic C-Series Frame Profile (H)
    Classic C-Series Frame Profile (C) Classic C-Series Frame Profile (F) Classic C-Series Frame Profile (J)
    Classic C-Series Frame Profile (CC) Classic C-Series Frame Profile (FF) Classic C-Series Frame Profile (JJ)
    Classic C-Series Frame Profile (CE) Classic C-Series Frame Profile (FE) Classic C-Series Frame Profile (JE)
    Classic C-Series Frame Profile (D) Classic C-Series Frame Profile (channel section) Classic C-Series Frame Profile (K)
    Classic C-Series Frame Profile (EE)
    FX  3 ¾” FACE HEADER — Use with sub frame for CMU Application EX  3 ¾” FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation FXi  3 ¾” FACE INSERT — Use for sub frame at head with standard frame in CMU
    Classic C-Series Frame Profile (Fex) Classic C-Series Frame Profile (Eex) Classic C-Series Frame Profile (Eexi)
    GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.
    Classic C-Series Frame Profile (Mullion w/Glazing) Classic C-Series Frame Profile (Frame w/Stop and Glazing)) Classic C-Series Frame Profile (Mullion w/Glazing No Stop)

    NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, or F.    2. 4″ Sidelights are only avaliable in Profiles E or G.     3. Profiles are shown with TA-8 Casing for example only.

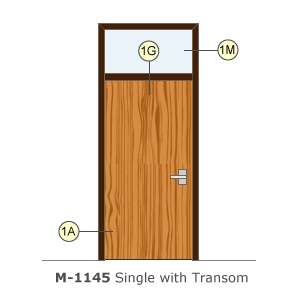

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Elevations

    Click to enlarge drawings

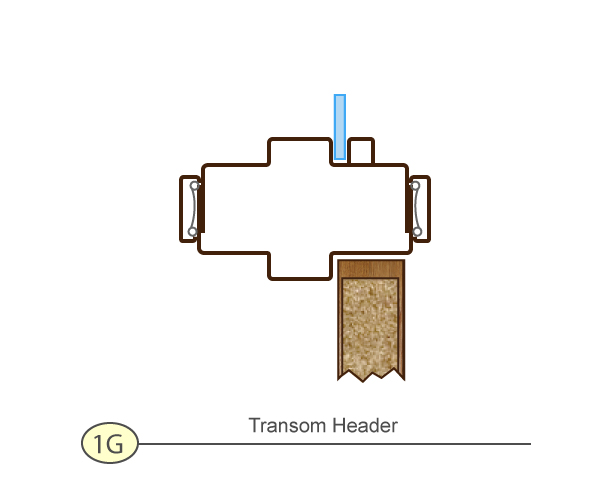

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom | Details

    Click to enlarge drawings

    CLASSIC FRAME (S-Series & C-Series) – Single with Transom

    PDF Image Thumb Classic Download File in Adobe Acrobat Format PDF DOWNLOAD Classic – Single with Transom.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
