CLASSIC FRAME (S-Series & C-Series)

Timely Prefinished Steel Door Frames Classic series general information drawing



Our new GalXC™ material is now standard for all Timely door frames raising the quality and performance properties to the highest level at an exceptional value. GalXC is a Hot Dipped Galvanized product that provides superior corrosion resistance in the harshest environments while balancing outstanding surface, gauge, and shape quality.



Our GalXC Hot Dipped Galvanized Classic Frame is our most popular profile. It is the ideal solution for most commercial drywall applications.



Our Classic Frame is available in two material thicknesses, S-Series (20 gauge) and C-Series (18 gauge) prefinished hot dipped galvanized steel.



Finishing options include 2 standard colors, 4 premium colors, 30 pre-matched custom colors, project matched custom colors or primed for field painting. GalXC is easier to specify, ALL Timely frames are now made of GalXC, so they can be installed in any environment.



Fire ratings up to 90 minutes are available for non-glazed openings, and up to 45 minutes for glazed openings.



Mullions are available in all jamb depths from 3 1/2" to 13".



Classic Frames will accommodate either a 1 3/8" or 1 3/4" door weighing up to 500 lbs.



STANDARD JAMB DEPTHS

S-SERIES (20 gauge): 2 5/8", 2 7/8", 3 1/2", 3 3/4", 4", 4 5/8", 4 7/8", 5" and 5 3/8"

C-SERIES (18 gauge): 2 5/8", 2 7/8", 3 1/2", 3 3/4", 4", 4 5/8", 4 7/8", 5", 5 3/8", 6 5/8", 6 7/8" and 7 1/4"



CUSTOM JAMB DEPTHS

C-SERIES (18 gauge): 2 5/8" to 13" in 1/8" increments.



NOTE: The available jamb depths and door weights listed here apply to the Classic Frame in general. Some limitations may apply when looking at specific information. For example a communicating frame must have a larger minimum jamb depth than listed here.



Download Classic Frame General Information (S-Series & C-Series)

    CLASSIC FRAME (S-Series & C-Series) | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    CLASSIC FRAME (S-Series & C-Series) | Color Options


    STANDARD FINISHES PRE-MATCHED CUSTOM FINISHES navaho White chip   winter White chip   white White chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    browntone chip white Smoke chip

      bone China chip   designer White chip   designer White chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    autumn Brown chip charcol chip   Cape Cod Grey chip   neutral Grey chip   Nickel chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    black chip drift Wood chip   sandy Beach chip   cameo Beige-chip   cozy Peach chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Grey chip brown Sugar chip   cocoa chip   doe Skin chip   harvest Mood chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBAN BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    western White chip doe Skin chip   ruby Red chip   cordovian chip   ruby Red chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOOD
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip pacific Blue chip   Twilight chip   country Blue chip   jade chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    alumatone Chip
    kentucky Grass chip   malibu Green chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY (CC901)   MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


      NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified.  Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department.  Colors & price subject to change.



    CLASSIC FRAME (S-Series) – Single / Dutch | Frame Profiles Icon S Series Large

    Click to enlarge drawings

    S-Series 20 gauge CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door

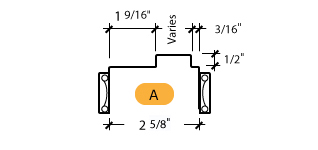

    Classic S-Series Frame Profile (A) Minimum order quantity of 100
    frames for Profiles A and G.
    Classic S-Series Frame Profile (G)

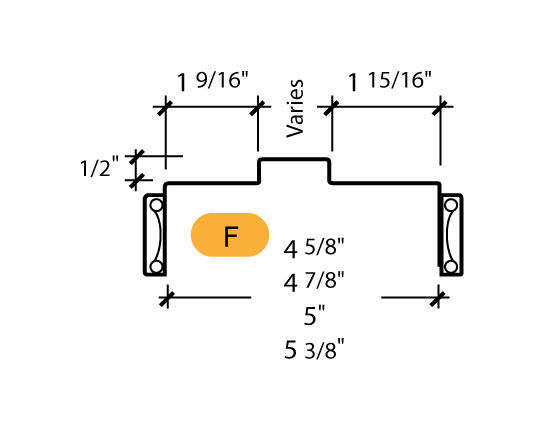

    Classic S-Series Frame Profile (C) Classic S-Series Frame Profile (F) Classic S-Series Frame Profile (J)
    S-series Footer

    CLASSIC FRAME (C-Series) – Single / Dutch | Frame Profiles Icon C Series Large

    Click to enlarge drawings

    C-Series 18 gauge CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door

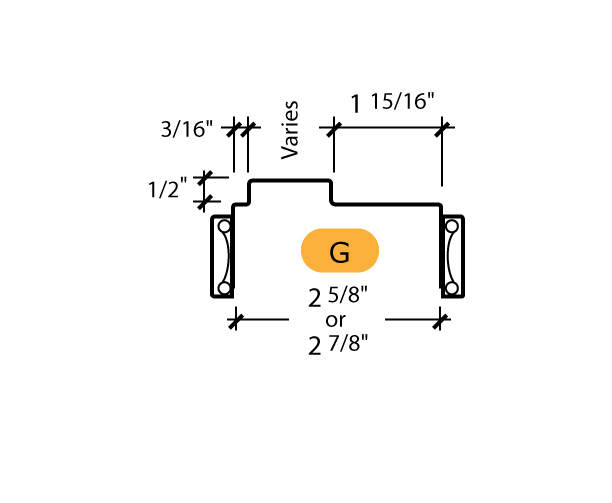

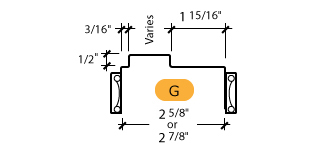

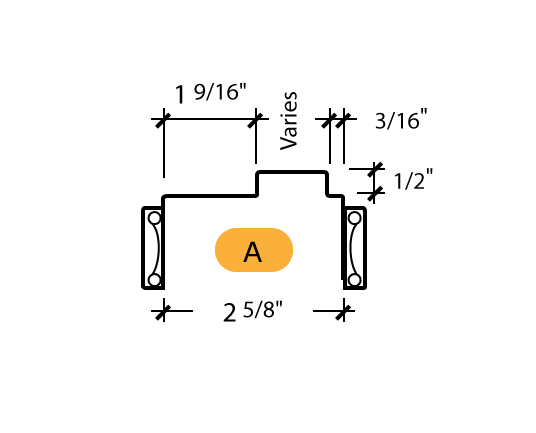

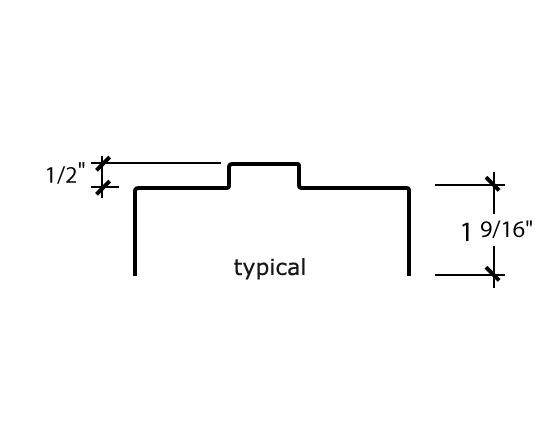

    Classic C-Series Frame Profile (A) Classic C-Series Frame Profile Classic C-Series Frame Profile (G)

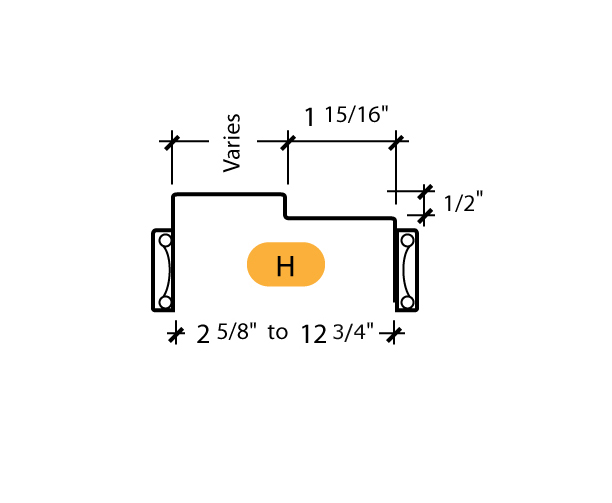

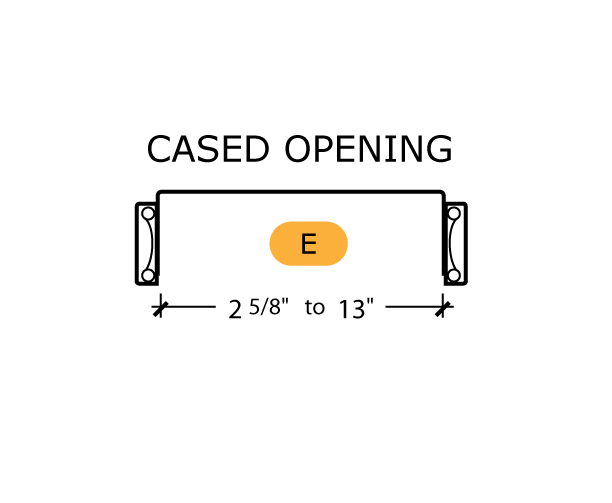

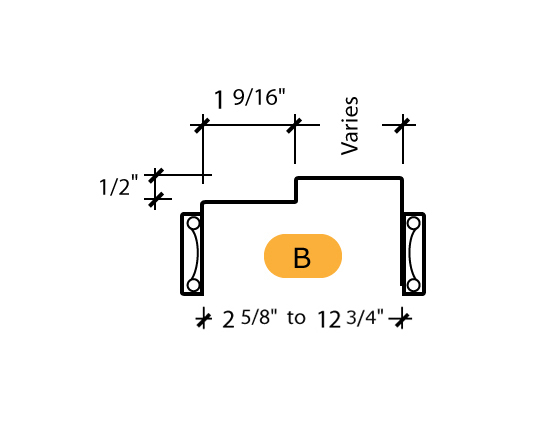

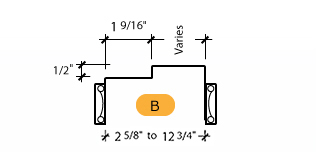

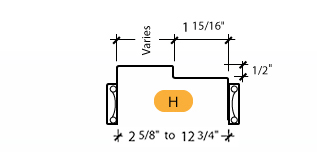

    Classic C-Series Frame Profile (B) Classic C-Series Frame Profile (E) Classic C-Series Frame Profile (H)

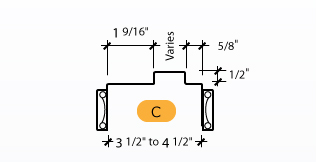

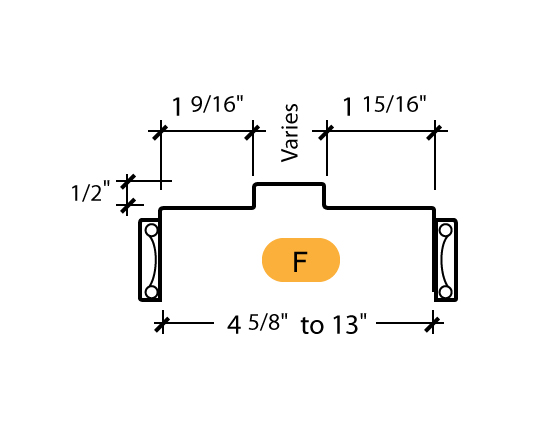

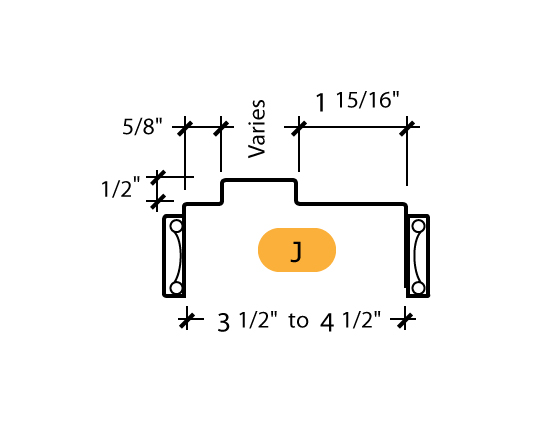

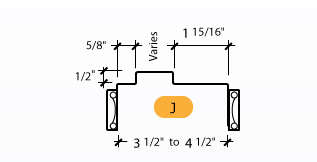

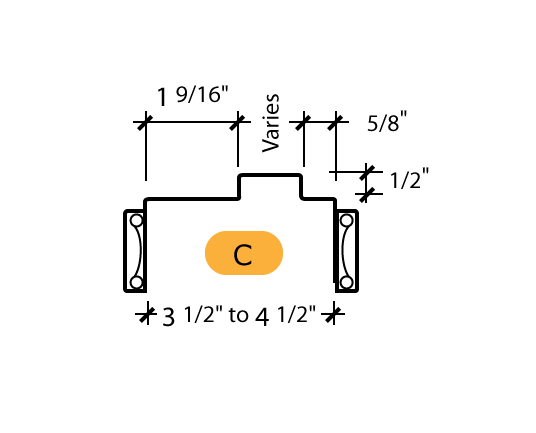

    Classic C-Series Frame Profile (C) Classic C-Series Frame Profile (F) Classic C-Series Frame Profile (J)

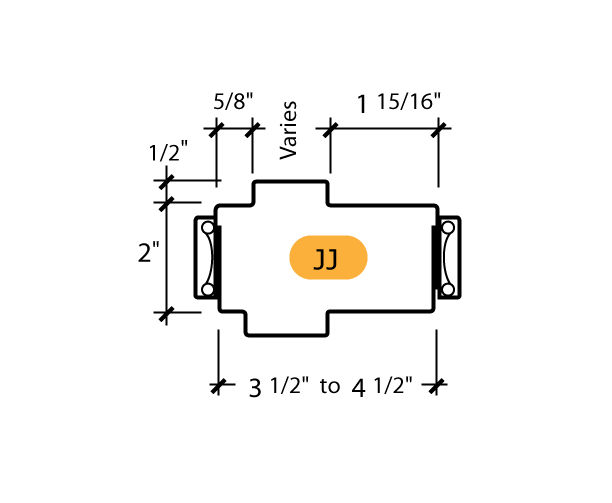

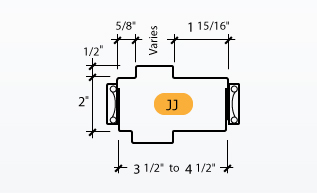

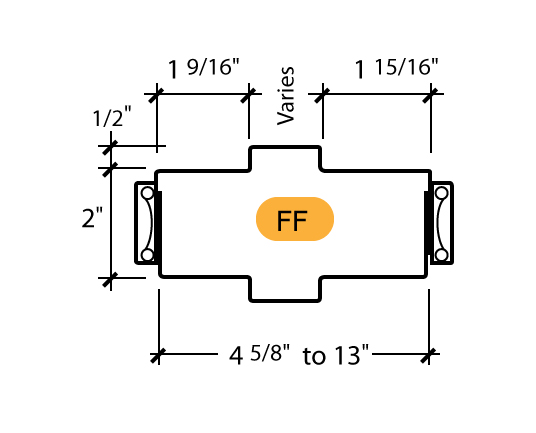

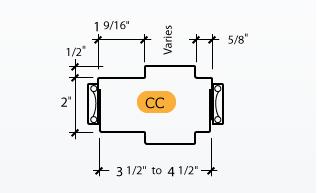

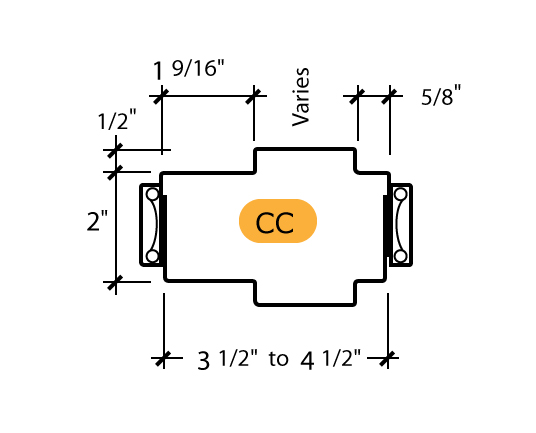

    Classic C-Series Frame Profile (CC) Classic C-Series Frame Profile (FF) Classic C-Series Frame Profile (JJ)

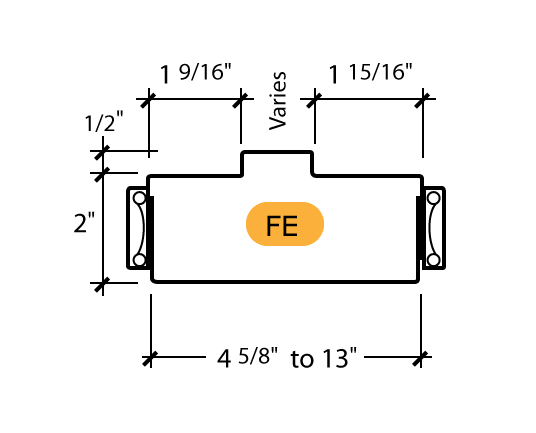

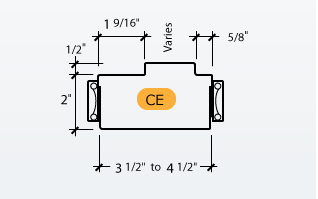

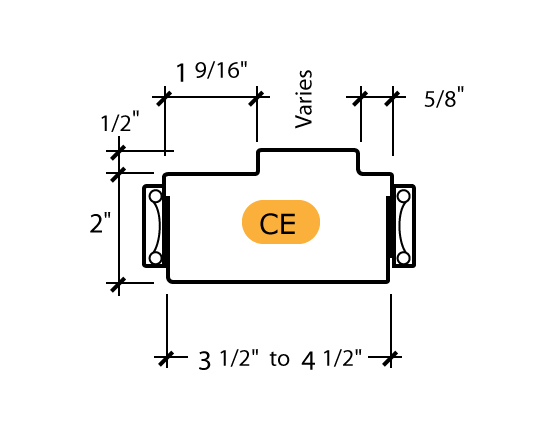

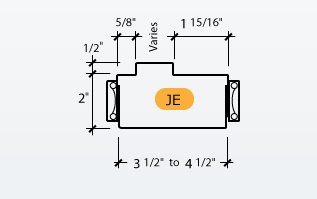

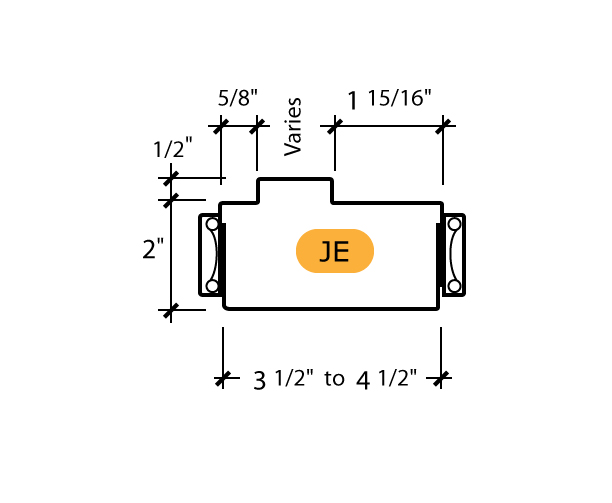

    Classic C-Series Frame Profile (CE) Classic C-Series Frame Profile (FE) Classic C-Series Frame Profile (JE)

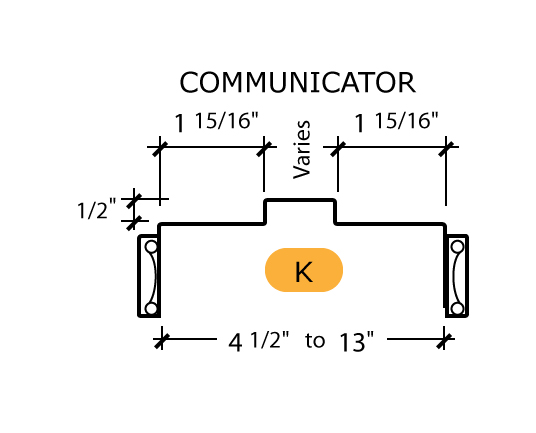

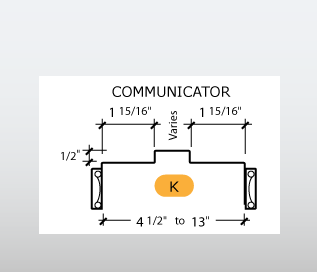

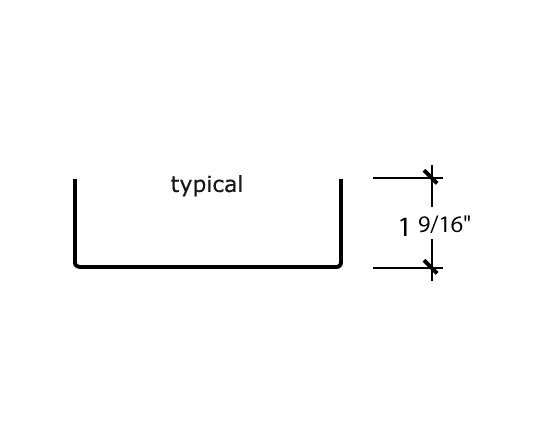

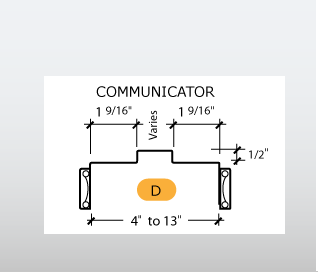

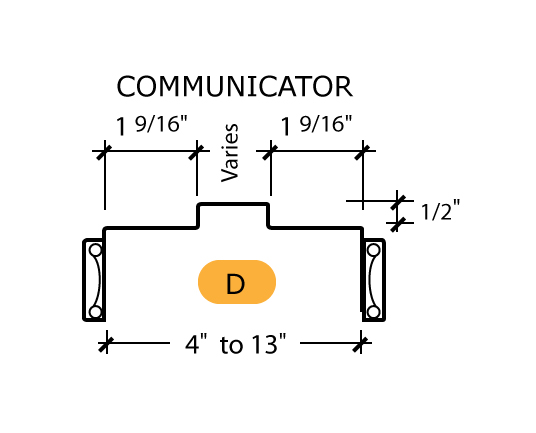

    Classic C-Series Frame Profile (D) Classic C-Series Frame Profile (channel section) Classic C-Series Frame Profile (K)

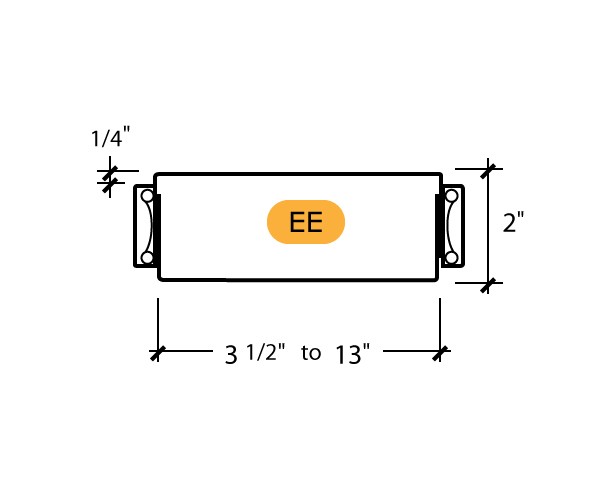

    Classic C-Series Frame Profile (EE)

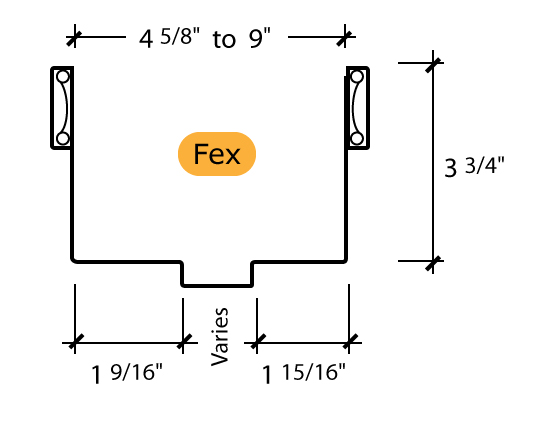

    FX  3 ¾" FACE HEADER — Use with sub frame for CMU Application

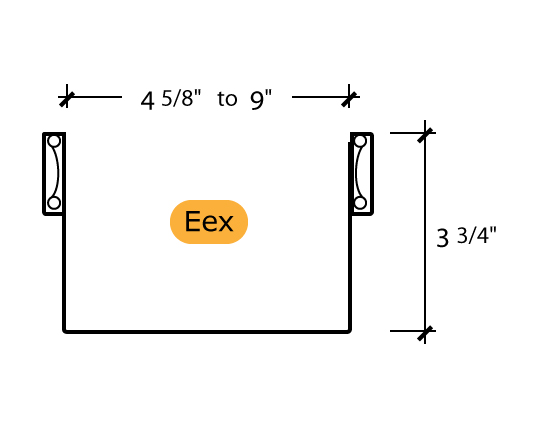

    EX  3 ¾" FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation

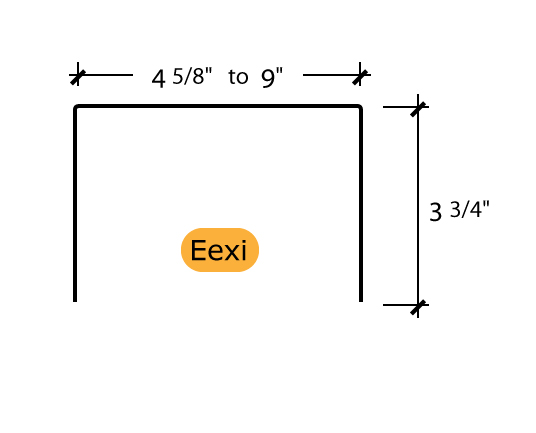

    FXi  3 ¾" FACE INSERT — Use for sub frame at head with standard frame in CMU

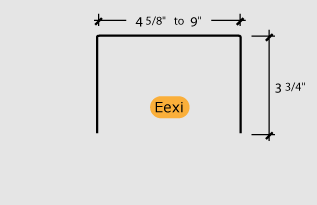

    Classic C-Series Frame Profile (Fex) Classic C-Series Frame Profile (Eex) Classic C-Series Frame Profile (Eexi)

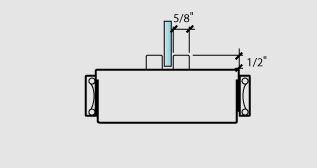

    GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.

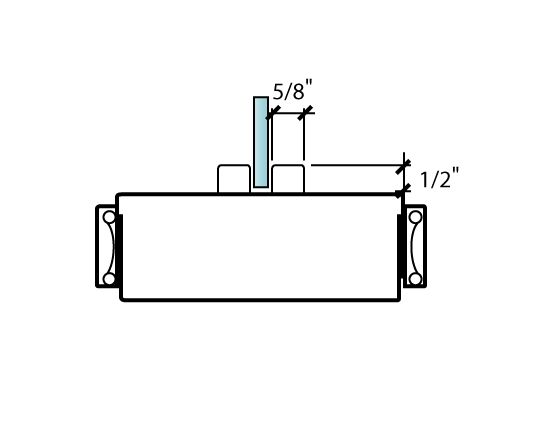

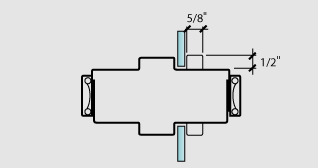

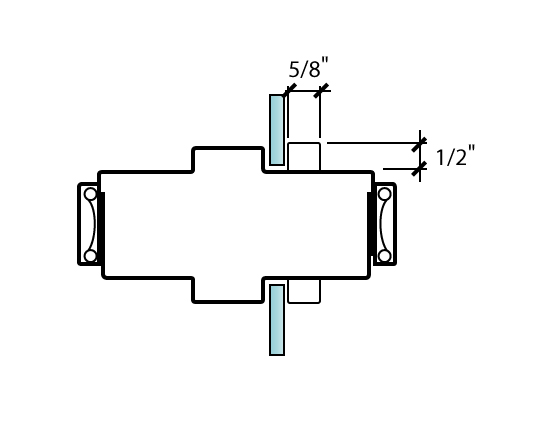

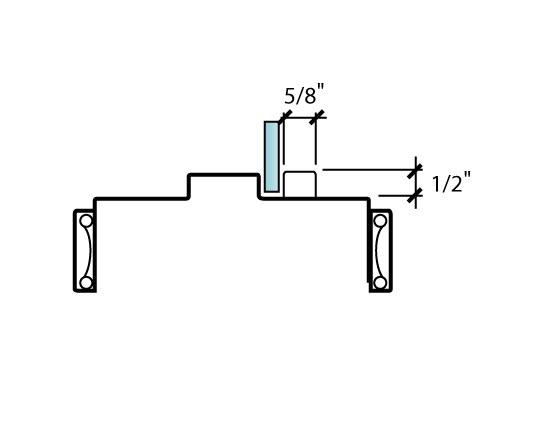

    Classic C-Series Frame Profile (Mullion w/Glazing) Classic C-Series Frame Profile (Frame w/Stop and Glazing)) Classic C-Series Frame Profile (Mullion w/Glazing No Stop)

    NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, or F.    2. 4" Sidelights are only avaliable in Profiles E or G.     3. Profiles are shown with TA-8 Casing for example only.
