ELEVATIONS B – Classic Frames with TA28M casing

Classic Elevations B Casing Drawings

Elevations B are intended for frames using TA-28M casing ONLY.

  • Saved as AutoCad 2010 files.







Select individual files from below or a single file
containing All Timely Frames Classic Elevation B File Here.



    Elevations B – Classic Frames with TA28M casing

    Frame Elevations are drawn with a solid Polyline.

    Rough Openings are drawn with a dashed Polyline.

    STEP 1: INSERT and EXPLODE the BLOCK you need into your drawing.

    STEP 2: STRETCH and add mullions as needed. (NOTE: Draw Mullions with a 2" face).

    STEP 3: COPY the Rough Opening lines to the appropriate location and dimension as needed. (NOTE: The Rough Opening stretched with the elevation as it was being modified.)

    FYI: Rough Openings are measured from the frame rabbet as follows:

    JAMBS – add 5/8" per side
    HEADS – add 13/16" above
    SILLS – add 7/16" below

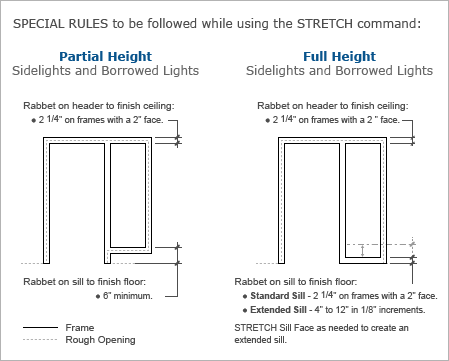

    Classic Frame CAD Drawing for Instructions on Elevations B

    Elevations B – Classic Frames with TA-28M casing

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button

    Elevations B – Classic Frames with TA-28M casing

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button

    Elevations B – Classic Frames with TA-28M casing

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button



    Elevations B – Classic Frames with TA-28M casing

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button
    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button



    Elevations B – Classic Frames with TA-28M casing

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button



    Elevations B – Classic Frames with TA-28M casing

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button CAD Download File Button

    CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames CAD Drawing for Timely Door Frames
    CAD Download File Button CAD Download File Button CAD Download File Button
