ELEVATIONS A – CLASSIC FRAMES WITH TA-8, TA-23 OR TA-28 CASING

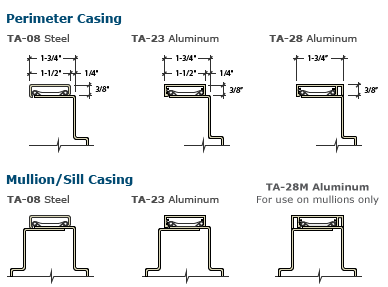

Classic Frame CAD Files Elevations A Top GraphicElevations A are intended for frames using TA-8,
TA-23
or TA-28 casing ONLY.

  • Saved as AutoCad 2010 files.













Select individual files from below or a single file
containing  ALL Classic Frame Elevations A Drawing Here


    ELEVATIONS A – CLASSIC FRAMES
    WITH TA-8, TA-23 OR TA28 CASING

    Frame Elevations are drawn with a solid Polyline.

    Rough Openings are drawn with a dashed Polyline.

    STEP 1: INSERT and EXPLODE the BLOCK you need into your drawing.

    STEP 2: STRETCH and add mullions as needed. (NOTE: Draw Mullions with a 2" face).

    STEP 3: COPY the Rough Opening lines to the appropriate location and dimension as needed. (NOTE: The Rough Opening stretched with the elevation as it was being modified.)

    FYI: Rough Openings are measured from the frame rabbet as follows:

    JAMBS – add 5/8" per side
    HEADS – add 13/16" above
    SILLS – add 7/16" below

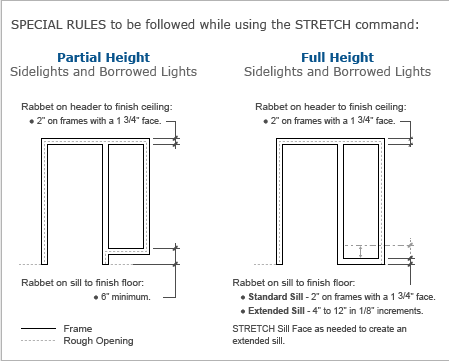

    Classic Frame CAD Elevations A Instructions Drawing




    ELEVATIONS A – CLASSIC FRAMES WITH TA-8, TA-23 OR TA28 CASING
