ADJUSTABLE KERFED – PLAN PROFILES

  • Plan Profiles are saved as AutoCad 2010 files.
  • Plan Profiles are Dynamic Blocks with the ability to:
    1. Select from 6 different casing profiles, 1 example wood casing or no-casing.
    2. Select a valid wall size.

NOTE: Dimensions shown are part of the dynamic blocks and should not be manually adjusted. Dimensions are “annotative” and can be set in model space to (3" = 1' – 0" default), (6" = 1' – 0") and (1' – 0" = 1' – 0").

Select individual files from below or a single file containing ALL Adjustable Kerfed Frame Profiles at bottom.

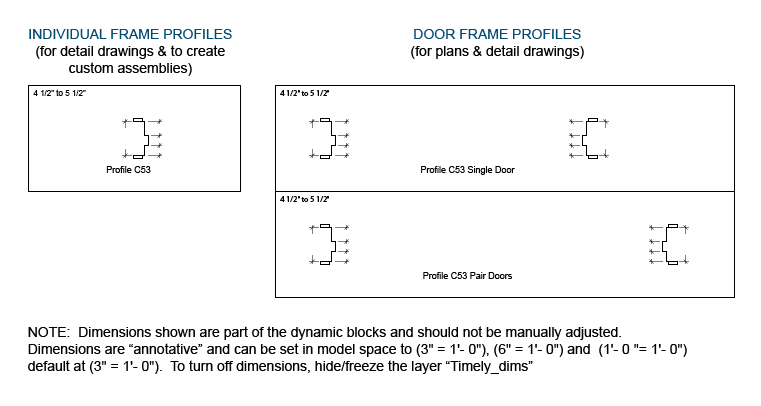

    Example of a downloaded CAD file for Profile C53.

    FIXED THROAT KERFED – Frame Profiles



    AK SERIES 20 GAGE CRS
    1 3/4" Door
    AK Profile C53  AK Profile C83
     Download Button  Download Button

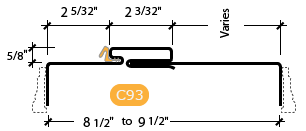

    AK Profile C63  AK Profile C93
     Download Button  Download Button

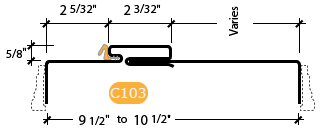

    AK Profile C73  AK Profile C103
     Download Button  Download Button
    NOTE: Mullions and Sidelights are not available for AK-Series frames.
