DOUBLE EGRESS FRAME (DE-SERIES) PAIR with TRANSOM
Timely Door Frames Double Egress Pair Drawing

    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Related Information

    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Fire Rating



    Icon for Fire Rating FIRE RATING DOOR AREA – DOUBLE EGRESS Pair

    JAMB DEPTH RANGE 45, 90 minute GENERAL INFORMATION
    Min. Jamb Depth:

    4 7/8"



    Max. Jamb Depth:

    12 3/4"

    Max. Width:

    8' – 0"



    Max. Height:

    8' – 0"

    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood or Aluminum casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.



    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Double Egress Pair with Classic Transom
    WIDTH

    For a pair of Double egress doors, the rough opening with is 2 1/2" larger than the total nominal width of the doors. Since the doors mount on the “stop” area rather than the “rabbet”, the frame is actually 1 1/4" wider than a standard pair frame.

    Width is sum of the nominal widths of both doors leaves
    ROUGH OPENING: Nominal Door width(s) + astragal width (if mounted between the doors) + 2 1/2"

    HEIGHT

    For a pair of Double Egress doors, the rough opening height is 1" over nominal height or 13/16" over net height. Since Timely standard frames are actually 3/16" longer than the nominal height (Timely 7’0" frames are actually 7’0 3/16" long)

    Timely Standard Height – 3/16" over nominal height
    ROUGH OPENING: Nominal height plus 1"
    Net Height – for frames prepared to other manufacturers’ locations
    ROUGH OPENING: Net height plus 13/16"
    Download Double Egress – Pair with Classic Transom | Rough Opening image


    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Finishing Options


    STANDARD
    FINISHES
      PRE-MATCHED CUSTOM FINISHES Navajo white Chip   Winter White Chip   White white Chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    Browntone Chip White Smoke Chip

      bone china Chip   Navajo white Chip   Snow white Chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    Autumn Brown Chip Charcoal Chip   Cape Cod Chip   Neutral Gray Chip   Nickel Chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    Black Chip driftwood Chip   Sandy Beach Chip   Cameo Beige Chip   Thunder Chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Gray Chip Black Bean Chip   Urban Bronze Chip   Navajo white Chip   Coacoa Chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBANE BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    Western white Chip Doeskin Chip   Harvest Moon Chip   Cordovan Chip   Ruby Red Chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOON
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip Pacific Blue Chip   Twilight Chip   Jade Chip   Kentucky Grass Chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    Primer Chip
    Ocean Spray Chip   Malubu Green Chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY
    (CC901)
      MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


      NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.



    DOUBLE EGRESS FRAME (DE-Series) | Frame ProfilesIcon DE Series Large

    Click to enlarge drawings

    DE-SERIES 18 GAUGE
    1 3/4" Door
    DE-Series Frame Profile (N) DE-Series Frame Profile (O) DE-Series Frame Profile (NF)
    DE-Series Frame Profile (OF)
    Note: Profiles are shown with TA-8 Casing for example only.

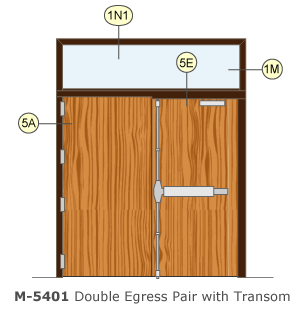

    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Elevations

    Click to enlarge drawings

    DOUBLE EGRESS FRAME (DE-Series) – Pair with CLASSIC (C-Series) Transom | Details

    Click to enlarge drawings

    DOUBLE EGRESS FRAME (DE -Series) – Pair


    PDF Image Thumb Double Egress - Pair Download File in Adobe Acrobat Format PDF DOWNLOAD Double Egress with Classic Transom – Pair.pdf
    To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
