KERFED FRAME (CK-SERIES) SINGLE with Transom
Timely Frames Kerfed Frame Single Drawing

    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Related Information

    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Fire Rating



    Icon for Fire Rating FIRE RATING DOOR AREA – KERFED Single

    JAMB DEPTH RANGE 20 Minute* 45 Minute GENERAL INFORMATION
    Min. Jamb Depth:

    4"



    Max. Jamb Depth:

    8'

    Max. Width:

    4' – 0"



    Max. Height:

    8' – 0"



    Max. Width:

    4' – 0"



    Max. Height:

    8' – 0"

    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub- frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood or Aluminum casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Single frames must be prepared for strike or reinforced with (TA-47) for a rim exit device strike.
    7. Embossed WHI 90 min. label is available for Primer Galvanized Frames only.
    8. Metal 90 min. label riveted to frame is available.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    * Tested and approved for Neutral Pressure only – not Positive Pressure approved.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.



    Icon for Fire Rating 45 MINUTE FIRE RATING TRANSOM AREA – CLASSIC Single with Glazing

    ASSEMBLY DOOR AREA GLASS AREA* GENERAL INFORMATION
    Max. Width:

    9' – 7"



    Max. Height:

    9' – 11"

    Max. Width:

    4' 0"



    Max. Height:

    9' – 0"



    dimension bracketWidth:

    up to 2'



    Max. Height:

    8' – 11"

    dimension bracketWidth:

    over 2' up to 3' **



    Max. Height:

    4' – 6" **

    1. All openings are approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, woodstud, or masonry construction.
    3. all ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Aluminum casing does not affect fire rating. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Single frames must be prepared for strike plate or reinforced with (TA-12) for a rim exit.
    Visible light is 1" less in width and height

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    * Multiple Glass Areas can be created with Mullions. The only limitations are Maximum Assembly Width and Height.

    ** For glass widths exceding 24" the maximum glass area is 1296 sq. in. unless approved by local AHJ.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Rough Openings

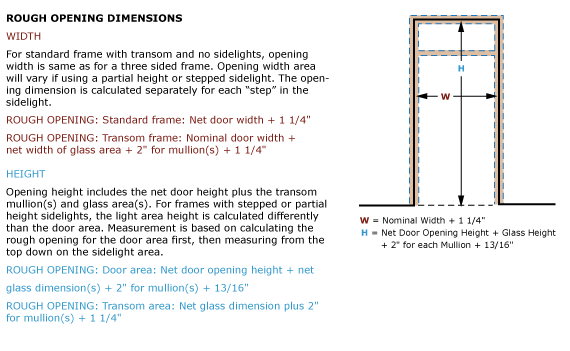

    ROUGH OPENING DIMENSIONS Rough Opening Classic Single/Dutch - Rough Opening
    WIDTH

    For standard frame with transom and no sidelights, opening width is same as for a three sided frame. Opening width area will vary if using a partial height or stepped sidelight. The opening dimension is calculated separately for each “step” in the sidelight.

    ROUGH OPENING: Standard frame: Net door width + 1 1/4"
    ROUGH OPENING: Transom frame: Nominal door width +
    net width of glass area + 2″ for mullion(s)
    + 1 1/4″
    HEIGHT

    Opening height includes the net door height plus the transom mullion(s) and glass area(s). For frames with stepped or partial height sidelights, the light area height is calculated differently than the door area. Measurement is based on calculating the rough opening for the door area first, then measuring from the top down on the sidelight area.

    ROUGH OPENING: Door area: Net door opening height +
    net glass dimension(s) + 2″ for mullion(s)
    + 13/16″
    ROUGH OPENING: Transom area: Net glass dimension + 2"
    for mullion(s) + 1 1/4"

    Download Kerfed – Single with Transom | Rough Opening image


    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame. Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Color Options


    STANDARD
    FINISHES
      PRE-MATCHED CUSTOM FINISHES Navajo white Chip   Winter White Chip   White white Chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    Browntone Chip White Smoke Chip

      bone china Chip   Navajo white Chip   Snow white Chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    Autumn Brown Chip Charcoal Chip   Cape Cod Chip   Neutral Gray Chip   Nickel Chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    Black Chip driftwood Chip   Sandy Beach Chip   Cameo Beige Chip   Thunder Chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Gray Chip Black Bean Chip   Urban Bronze Chip   Navajo white Chip   Coacoa Chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBANE BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    Western white Chip Doeskin Chip   Harvest Moon Chip   Cordovan Chip   Ruby Red Chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOON
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip Pacific Blue Chip   Twilight Chip   Jade Chip   Kentucky Grass Chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    Primer Chip
    Ocean Spray Chip   Malubu Green Chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY
    (CC901)
      MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


      NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.



    KERFED FRAME (CK-Series) | Frame ProfilesIcon CK Series Large

    Click to enlarge drawings

    CK-SERIES 18 GAUGE
      1 3/4" Door

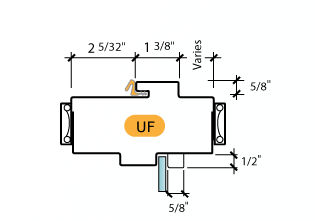

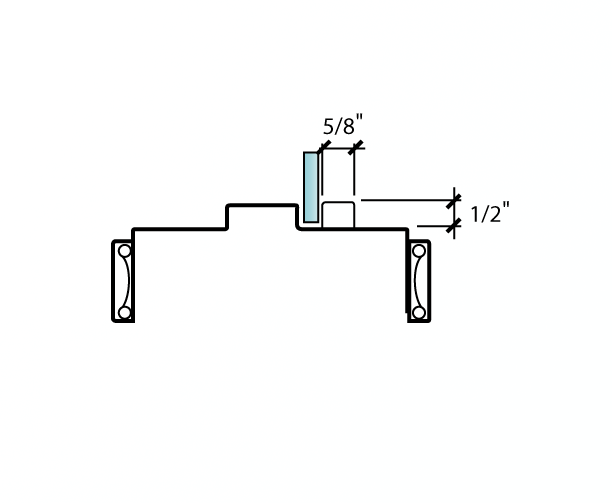

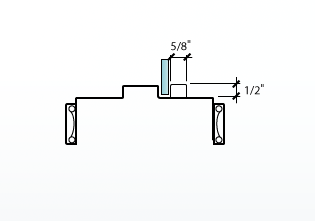

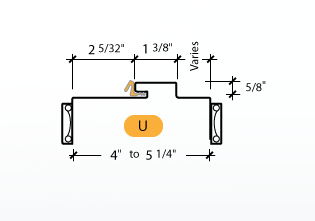

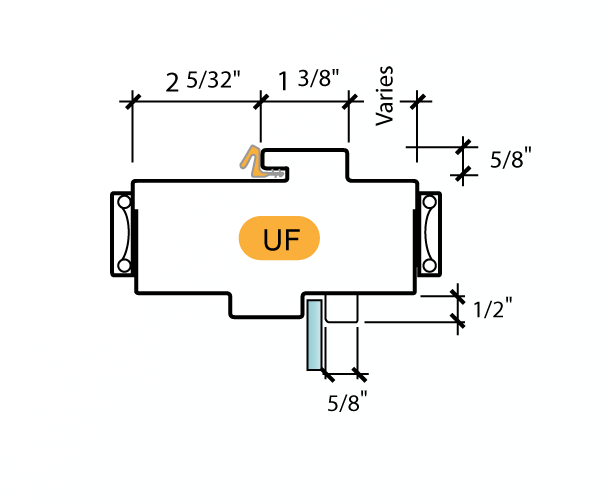

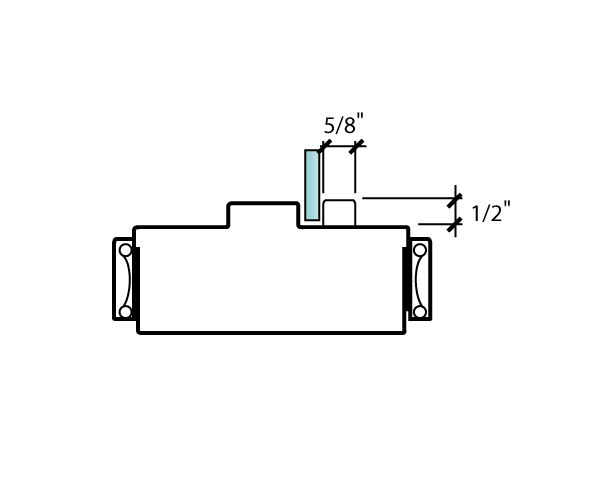

    Kerfed - Frame Profile (U) Kerfed - Frame Profile (UF) Classic Single with Glazing - Glass Stop or Door Panel can be applied to one or both sides of any Mullion or Jamb

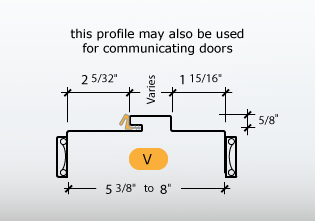

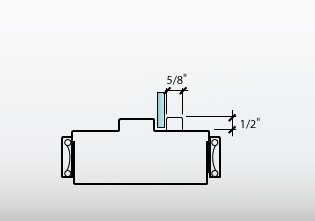

    Classic Floor Channel and Classic Single with Glazing - Glass Stop or Door Panel can be applied to one or both sides of any Mullion or Jamb   Kerfed - Frame Profile (V) - this profile may also be used for Communicating Doors
    Profiles are shown with TA-8 Casing for example only.

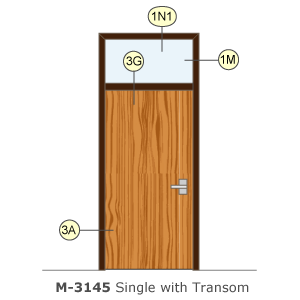

    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Elevations

    Click to enlarge drawings

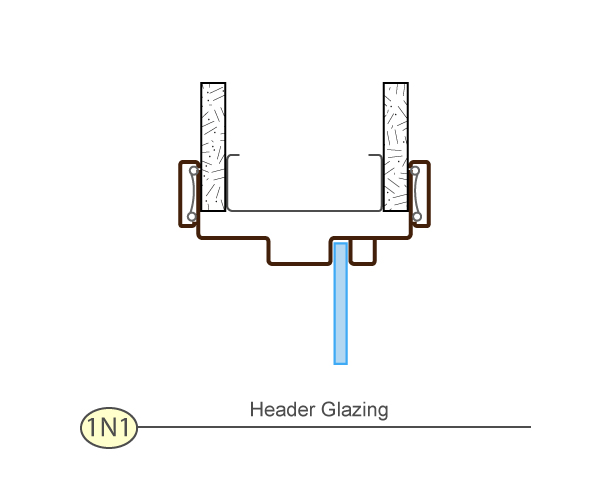

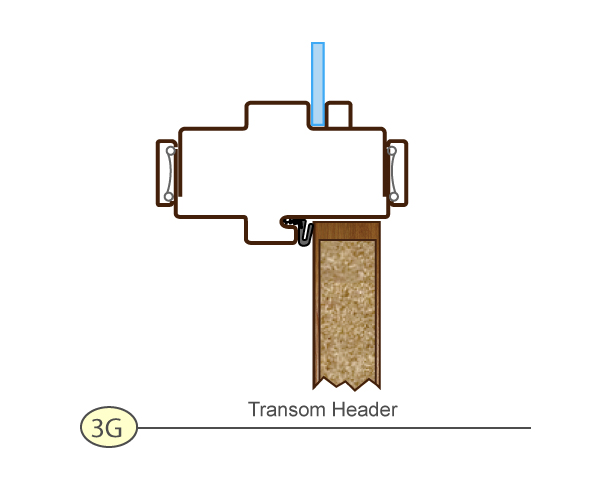

    KERFED FRAME (CK-Series) Single with CLASSIC (C-Series) Transom | Details

    Click to enlarge drawings

    KERFED FRAME (CK-Series) – Single


    PDF Image Thumb Kerfed-Single Download File in Adobe Acrobat Format PDF DOWNLOAD Kerfed-Single with Classic Transom.pdf
    To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
