CLASSIC FRAME (S-Series & C-Series) SINGLE / DUTCH
Timely Door Frames Classic Frame Single Drawing

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Related Information

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Fire Rating

    Icon for Fire Rating FIRE RATING

    JAMB DEPTH RANGE 20 Minute* (C-Series only) 45, 90 Minute (S & C-Series) GENERAL INFORMATION
    Min. Jamb Depth:

    3 3/8"



    Max. Jamb Depth:

    13"

    Max. Door Width:

    4' -0"



    Max. Door Height:

    10' – 0"



    Max. Door Width:

    4' – 0"



    Max. Door Height:

    9' – 0"

    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recomended for masonry installations. If wood sub- frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood, Aluminum or PVC casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Single frames must be prepared for strike or reinforced with (TA-12) for a rim exit device strike.
    7. Embossed WHI 90 min. label is available for Primer Galvanized Frames only.
    8. Metal 90 min. label riveted to frame is available.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    * Tested and approved for Neutral Pressure only – not Positive Pressure approved.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Classic Single/Dutch - Rough Opening
    WIDTH

    Rough opening width is 1 1/4" over nominal door width. This provides for 5/8" clearance between the jamb and the wall. This clearance is necessary for the pocket on the strike and the projection of the hinge screws. Frames can be installed with smaller opening widths but, in some cases, the framing must be relieved to provide the necessary clearance for plumbing the frame and installing the hardware. Opening width maximum is 1 7/8" which allows 5/16" of the frame face against the wall. For wider rough openings, the frame must be positioned with equal clearance on both sides. (Use oval alignment slots to adjust clearance when installing)

    ROUGH OPENING WIDTH: Classic Frames (S-Series and C-Series) –
    Nominal door width + 1 1/4"

    HEIGHT

    Rough Opening height must provide clearance to level the header and interlock the jambs. Uneven floors will affect this measurement. Maximum space for adequate anchorage is 1 3/16" over net height resulting in approximately 5/16" of the frame face against the wall. While this is not recommended, the frame can still be installed.


    Timely standard height – 3/16" over nominal.
    ROUGH OPENING HEIGHT: Nominal Height + 1" (Net height +13/16")
    Net Height – Frames manufactured to net heights
    ROUGH OPENING HEIGHT: Net height + 13/16"
    Download Classic – Single Dutch | Rough Opening image


    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Color Options

    Galvanizing is available for all painted finishes and is REQUIRED in areas subject to high humidity, corrosive atmosphere or exterior installations.

    STOCK COLORS   PRE-MATCHED CUSTOM COLORS
    Standard Price Custom color matching is also available. Submit color chip for matching. Consult factory for pricing.

    Timely carries a large raw materials inventory of Stock finishes. navaho White chip winter White chip
            NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)


    browntone chip white White chip

      white Smoke chip   bone China chip   designer White chip
    BROWNTONE
    (SC101)*†
    WHITE WHITE
    (CC301)
      WHITE SMOKE
    (CC302)
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304)

    western White chip charcol chip   Cape Cod Grey chip   neutral Grey chip   Nickel chip
    WESTERN WHITE
    (SC107)*†
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    primer EG chip drift Wood chip   sandy Beach chip   cameo Beige-chip   cozy Peach chip
    PRIMER EG (SC109)*† DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      COZY PEACH
    (CC504)
    Add 52¢ per ft.

    autumn Brown chip brown Sugar chip   cocoa chip   doe Skin chip   harvest Mood chip
    AUTUMN BROWN
    (SC102)*
    BROWN SUGAR
    (CC601)
      COCOA
    (CC602)
      DOESKIN
    (CC603)
      HARVEST MOON
    (CC604)

    black chip cordovian chip   ruby Red chip   rose Dust chip   mauve Mist chip
    BLACK
    (SC103)*†
    CORDOVAN
    (CC701)
      RUBY RED
    (CC702)
      ROSEDUST
    (CC703)
      MAUVE MIST
    (CC704)

    Stone Grey chip pacific Blue chip   Twilight chip   country Blue chip   jade chip
    STONE GRAY
    (SC106)*
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      COUNTRY BLUE
    (CC803)
      JADE
    (CC901)

    alumatone Chip
    kentucky Grass chip   miami Waters chip   malibu Green chip   black nickle Chip.png
    ALUMATONE
    (SC108)*
    KENTUCKY GRASS (CC902)   MIAMI WATERS
    (CC903)
      MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC 905)


    *Available for Adjustable Frames in powder coat

    †Available prefinished for Fixed Throat Kerf frames

    Close match to clear anodized aluminum

    Metal Plating with Clear Coat Gloss



    ELITE SERIES   black nickle Chip.png   black nickle Chip.png   black nickle Chip.png

    Colors shown may vary slightly.   BRIGHT SOLID BRASS (ES201) STAINLESS STEEL 430 BRIGHT (ES204) 304 #4 BRUSHED STAINLESS STEEL (ES206)
        BRIGHT PLATED BRASS (ES202)


    CLASSIC FRAME (S-Series) – Single / Dutch | Frame Profiles Icon S Series Large

    Click to enlarge drawings

    S-Series 20 gage CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic S-Series Frame Profile (A) Minimum order quantity of 100
    frames for Profiles A and G.
    Classic S-Series Frame Profile (G)
    Classic S-Series Frame Profile (C) Classic S-Series Frame Profile (F) Classic S-Series Frame Profile (J)
    S-series Footer

    CLASSIC FRAME (C-Series) – Single / Dutch | Frame Profiles Icon C Series Large

    Click to enlarge drawings

    C-Series 18 gage CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic C-Series Frame Profile (A) Classic C-Series Frame Profile Classic C-Series Frame Profile (G)
    Classic C-Series Frame Profile (B) Classic C-Series Frame Profile (E) Classic C-Series Frame Profile (H)
    Classic C-Series Frame Profile (C) Classic C-Series Frame Profile (F) Classic C-Series Frame Profile (J)
    Classic C-Series Frame Profile (CC) Classic C-Series Frame Profile (FF) Classic C-Series Frame Profile (JJ)
    Classic C-Series Frame Profile (CE) Classic C-Series Frame Profile (FE) Classic C-Series Frame Profile (JE)
    Classic C-Series Frame Profile (D) Classic C-Series Frame Profile (channel section) Classic C-Series Frame Profile (K)
    Classic C-Series Frame Profile (EE)
    FX  3 ¾" FACE HEADER — Use with sub frame for CMU Application
    EX  3 ¾" FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation
    FXi  3 ¾" FACE INSERT — Use for sub frame at head with standard frame in CMU
    Classic C-Series Frame Profile (FX) Classic C-Series Frame Profile (EX) Classic C-Series Frame Profile (FXi)
    GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.
    Classic C-Series Frame Profile (Mullion w/Glazing) Classic C-Series Frame Profile (Frame w/Stop and Glazing)) Classic C-Series Frame Profile (Mullion w/Glazing No Stop)

    NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, F or I.    2. 4" Sidelights are only avaliable in Profiles E or G.     3. Profiles are shown with TA-8 Casing for example only.

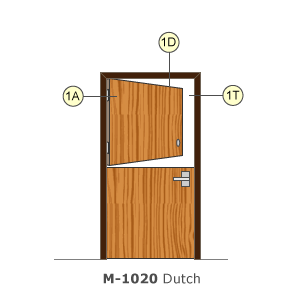

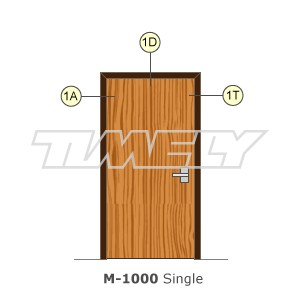

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Elevations

    Click to enlarge drawings

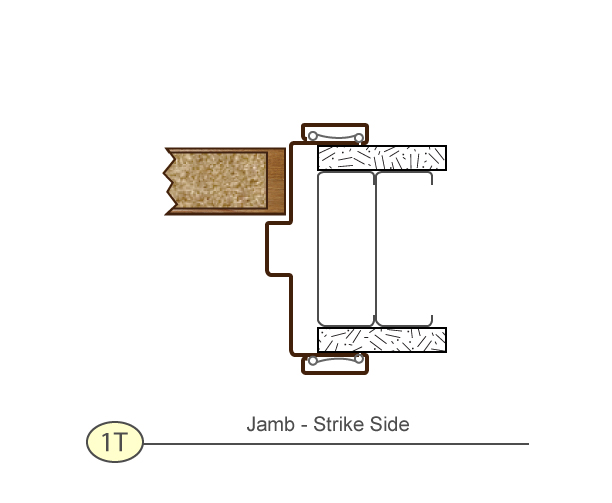

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch | Details

    Click to enlarge drawings

    CLASSIC FRAME (S-Series & C-Series) – Single / Dutch
