CLASSIC FRAME (C-SERIES) BI-PASS
Bi-Pass Door General Information Images

    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass | Related Information

    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Classic Pair with Glazing - Rough Opening
    WIDTH

    For a pair of Bi-Pass doors, the rough opening with is 1 1/4" larger than the total nominal width of the doors minus 1" for door overlap plus the width of any astragal mounted between the doors. If using a pair of 2'0" doors, the frame will be fabricated 3'11" inside width to accommodate door overlap.

    Width is 2 x door width less 1"
    ROUGH OPENING (W1):Nominal Door width x 2 minus 1" for overlap + 1 1/4"

    HEIGHT

    For a pair of Bi Pass doors, the rough opening height is 1" over nominal height or 13/16" over net height. Since Timely standard frames are actually 3/16" longer than the nominal height (Timely 7'0" frames are actually 7'0 3/16" long)

    Timely Standard Height – 3/16" over nominal height
    ROUGH OPENING: Nominal height plus 1"
    Net Height – for frames prepared to other manufacturers’ locations
    ROUGH OPENING: Nominal height plus 13/16"
    Download Classic – Bi-Pass | Rough Opening image


    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame. Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass | Color Options


    STANDARD
    FINISHES
      PRE-MATCHED CUSTOM FINISHES Navajo white Chip   Winter White Chip   White white Chip
          NAVAJO WHITE
    (CC104)
      WINTER WHITE
    (CC105)
      WHITE WHITE
    (CC301)


    Browntone Chip White Smoke Chip

      bone china Chip   Navajo white Chip   Snow white Chip
    BROWNTONE
    (SC101)
    WHITE SMOKE
    (CC302
    )
      BONE CHINA
    (CC303)
      DESIGNER WHITE
    (CC304
    )
      SNOW WHITE
    (CC311)

    Autumn Brown Chip Charcoal Chip   Cape Cod Chip   Neutral Gray Chip   Nickel Chip
    AUTUMN BROWN
    (SC102)
    CHARCOAL
    (CC401)
      CAPE COD GRAY
    (CC402)
      NEUTRAL GRAY
    (CC403)
      NICKEL
    (CC404)

    Black Chip driftwood Chip   Sandy Beach Chip   Cameo Beige Chip   Thunder Chip
    BLACK
    (SC103)
    DRIFTWOOD
    (CC501)
      SANDY BEACH
    (CC502)
      CAMEO BEIGE
    (CC503)
      THUNDER
    (CC511)


    Stone Gray Chip Black Bean Chip   Urban Bronze Chip   Navajo white Chip   Coacoa Chip
    STONE GRAY
    (SC106)
    BLACK BEAN
    (CC611)
      URBAN BRONZE
    (CC612)
      BROWN SUGAR
    (CC601)
      COCOA
    (CC602)

    Western white Chip Doeskin Chip   Harvest Moon Chip   Cordovan Chip   Ruby Red Chip
    WESTERN WHITE
    (SC107)
    DOESKIN
    (CC603)
      HARVEST MOON
    (CC604)
      CORDOVAN
    (CC701)
      RUBY RED
    (CC702)

    alumatone Chip Pacific Blue Chip   Twilight Chip   Jade Chip   Kentucky Grass Chip
    ALUMATONE
    (SC108)
    PACIFIC BLUE
    (CC801)
      TWILIGHT
    (CC802)
      JADE
    (CC901)
      KENTUCKY GRASS
    (CC902)

    Primer Chip
    Ocean Spray Chip   Malubu Green Chip   black nickle Chip.png
    PRIMER
    (SC109)
    OCEAN SPRAY
    (CC901)
      MALIBU GREEN
    (CC904)
      BLACK NICKEL
    (CC905)


    * Add 52¢ Alumatone, Autumn Brown, Black, Stone Gray NOTES: Consult factory for pricing and lead times.


    ELITE SERIES black nickle Chip.png   black nickle Chip.png
      430 BRIGHT STAINLESS
    STEEL (ES204)
      304 #4 BRUSHED STAINLESS
    STEEL (ES206)


    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified.  Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department.  Colors & price subject to change.



    CLASSIC FRAME (S-Series) | Frame Profiles Icon S Series Large

    Click to enlarge drawings

    S-Series 20 gauge CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic S-Series Frame Profile (A) Minimum order quantity of 100
    frames for Profiles A and G.
    Classic S-Series Frame Profile (G)
    Classic S-Series Frame Profile (C) Classic S-Series Frame Profile (F) Classic S-Series Frame Profile (J)
    S-series Footer

    CLASSIC FRAME (C-Series) | Frame Profiles Icon C Series Large

    Click to enlarge drawings

    C-Series 18 gauge CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Classic C-Series Frame Profile (A) Classic C-Series Frame Profile Classic C-Series Frame Profile (G)
    Classic C-Series Frame Profile (B) Classic C-Series Frame Profile (E) Classic C-Series Frame Profile (H)
    Classic C-Series Frame Profile (C) Classic C-Series Frame Profile (F) Classic C-Series Frame Profile (J)
    Classic C-Series Frame Profile (CC) Classic C-Series Frame Profile (FF) Classic C-Series Frame Profile (JJ)
    Classic C-Series Frame Profile (CE) Classic C-Series Frame Profile (FE) Classic C-Series Frame Profile (JE)
    Classic C-Series Frame Profile (D) Classic C-Series Frame Profile (channel section) Classic C-Series Frame Profile (K)
    Classic C-Series Frame Profile (EE)
    FX  3 ¾" FACE HEADER — Use with sub frame for CMU Application
    EX  3 ¾" FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation

    FXi  3 ¾" FACE INSERT — Use for sub frame at head with standard frame in CMU

    Classic C-Series Frame Profile (Fex) Classic C-Series Frame Profile (Eex) Classic C-Series Frame Profile (Eexi)
    GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.
    Classic C-Series Frame Profile (Mullion w/Glazing) Classic C-Series Frame Profile (Frame w/Stop and Glazing)) Classic C-Series Frame Profile (Mullion w/Glazing No Stop)

    NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, or F.    2. 4" Sidelights are only avaliable in Profiles E or G.     3. Profiles are shown with TA-8 Casing for example only.

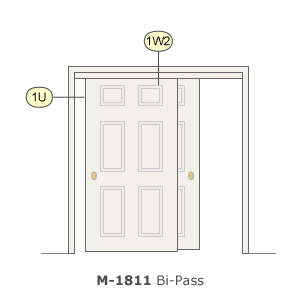

    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass | Elevations

    Click to enlarge drawings

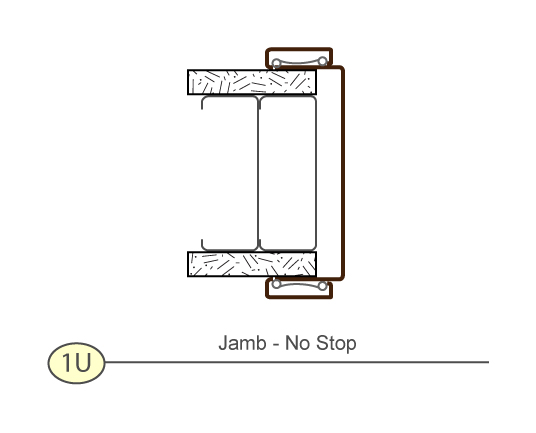

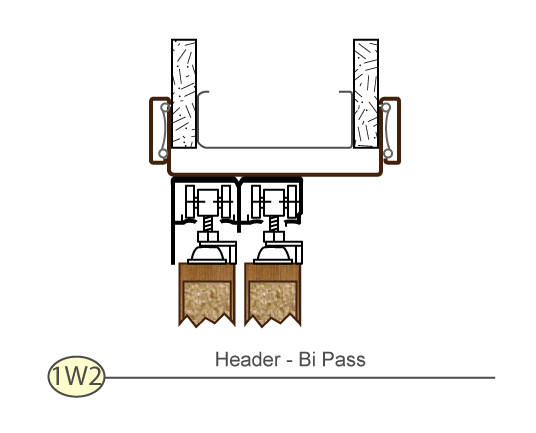

    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass | Details

    Click to enlarge drawings



    CLASSIC FRAME (S-Series & C-Series) – Bi-Pass

    Classic Bi-Pass pdf Download File in Adobe Acrobat Format PDF DOWNLOAD Classic-Bi-Pass.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
