ADJUSTABLE KERFED FRAME (AK-SERIES) SINGLE LIMITED DISTRIBUTION*
 Timely Frames Adjustable Kerfed Door Frame Pair Drawing


    ADJUSTABLE KERFED FRAME (AK-Series) – SINGLE | Related Information

    ADJUSTABLE KERFED FRAME (AK-Series) – SINGLE | Fire Rating



    Icon for Fire Rating FIRE RATING

    JAMB DEPTH RANGE 90 minute GENERAL INFORMATION
    Min. Jamb Depth:

    4 1/2″



    Max. Jamb Depth:

    10 1/2″



    Max. Door Width:

    4′ – 0″



    Max. Door Height:

    8′ – 0″





    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Single frames must be prepared for strike or reinforced with (TA-48) for a rim exit device strike.
    7. Embossed WHI 90 min. label is available for Primed Frames only.
    8. Metal 90 min. label riveted to frame is available.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    ADJUSTABLE KERFED FRAME (AK-Series) – Single | Rough Openings

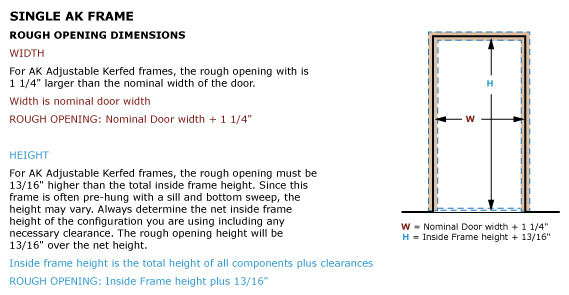

    ROUGH OPENING DIMENSIONS   Rough Opening Classic Single Access - Rough Opening
    WIDTH

    For AK Adjustable Kerfed frames, the rough opening with is 1 1/4″ larger than the nominal width of the door.


    Width is nominal door width
    ROUGH OPENING: Nominal Door width + 1 1/4″
    HEIGHT

    For AK Adjustable Kerfed frames, the rough opening must be 13/16″ higher than the total inside frame height. Since this frame is often pre-hung with a sill and bottom sweep, the height may vary. Always determine the net inside frame height of the configuration you are using including any necessary clearance. The rough opening height will be 13/16″ over the net height.

    Inside frame height is the total height of all components plus clearances
    ROUGH OPENING: Inside Frame height plus 13/16″
    Download Adjustable Kerfed – Single | Rough Opening image



    ADJUSTABLE KERFED FRAME (AK-Series) | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    AK Series Frame: The AK series frame is only available without factory applied casing clips. If Timely applied casing is required, order TA-18 casing retainer clips which are applied to the frame at the jobsite after the frame is installed.

    Wood Casing: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    (AK frames are not available with glazing)

    ADJUSTABLE KERFED FRAME (AK-Series) – SINGLE | Color Options


    STOCK FINISH
    Primed


    HIGH DEFINITION WHITE









     ADJUSTABLE KERFED FRAME (AK-Series) | Frame ProfilesIcon AK Series Large

    Click to enlarge drawings

    AK-SERIES 20 GAUGE
    1 3/4″ Door
    Adjustable Kerfed - Frame Profile (C53) Adjustable Kerfed - Frame Profile (C83)
    Adjustable Kerfed - Frame Profile (C63) Adjustable Kerfed - Frame Profile (C93)
    Adjustable Kerfed - Frame Profile (C73) Adjustable Kerfed - Frame Profile (C103)
      NOTES: 1. Mullions and Sidelights are not avaliable for AK-Series frames.

    ADJUSTABLE KERFED FRAME (AK-Series) – SINGLE | Elevations

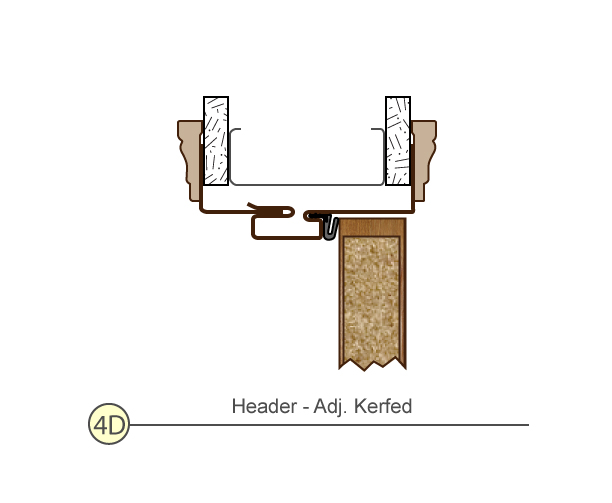

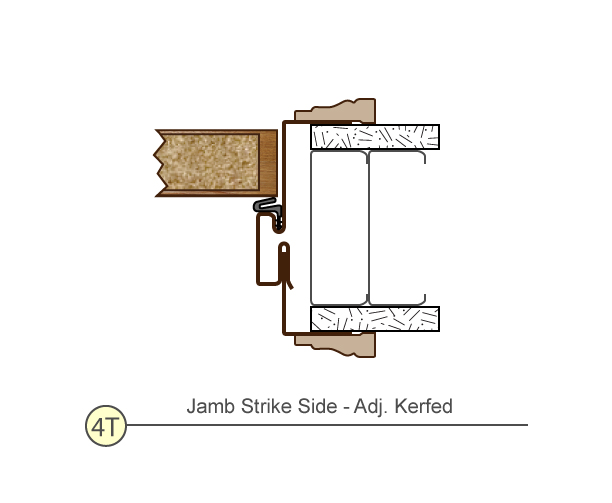

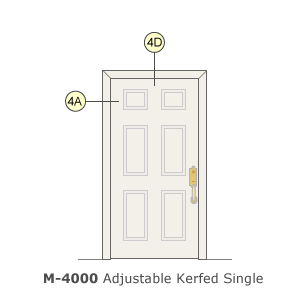

    Click to enlarge drawings




    ADJUSTABLE KERFED FRAME (AK-Series) – SINGLE | Details

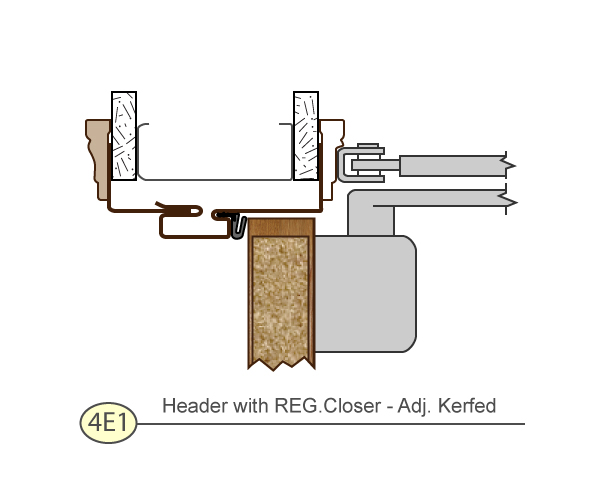

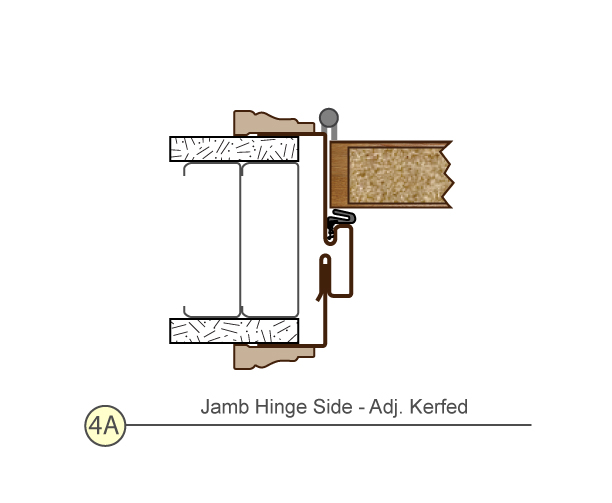

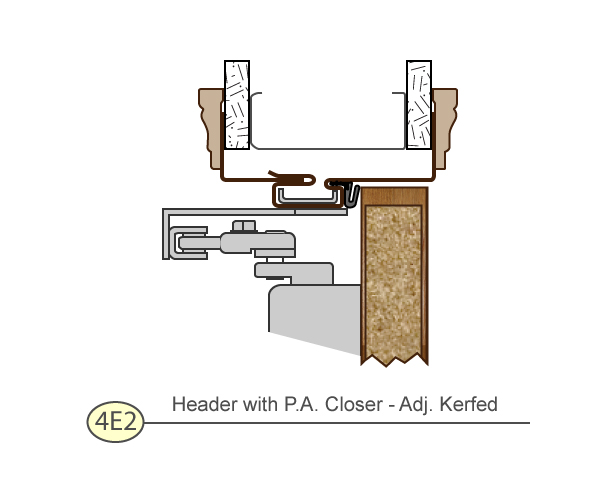

    Click to enlarge drawings



    ADJUSTABLE KERFED FRAME (AK -Series) – Single


    PDF Image Thumb Adjustable Kerfed - Single Download File in Adobe Acrobat Format PDF DOWNLOAD Adjustable Kerfed-Single.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
