ADJUSTABLE KERFED FRAME (AK-Series) PAIR LIMITED DISTRIBUTION*
 Timely Frames Adjustable Kerfed Door Frame Pair Drawing


    ADJUSTABLE KERFED FRAME (AK-Series) – Pair | Related Information

    ADJUSTABLE KERFED FRAME (AK-Series) – Pair | Fire Rating

    Icon for Fire Rating FIRE RATING

    JAMB DEPTH RANGE 90 MINUTE GENERAL INFORMATION
    Min. Jamb Depth:

    4 1/2"



    Max. Jamb Depth:

    10 1/2"

    Max. Door Width:

    4' – 0"



    Max. Door Height:

    8' – 0"





    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Embossed WHI 90 min. label is available for Primer Galvanized Frames only.
    7. Metal 90 min. label riveted to frame is available.

    View minimum screw length here

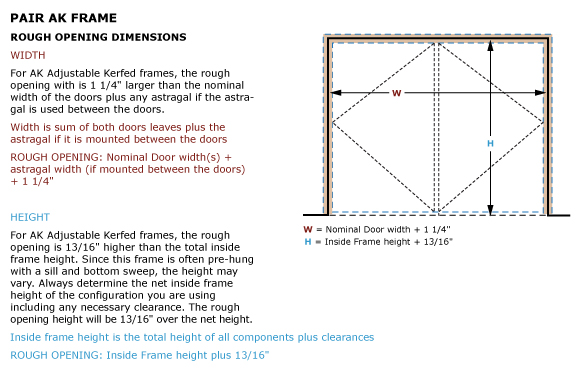

    All dimensions shown are inside dimensions – net door opening size.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    ADJUSTABLE KERFED FRAME (AK-Series) – Pair | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.

    AK Series Frame: The AK series frame is only available without factory applied casing clips. If Timely applied casing is required, order
    TA-18 casing retainer clips which are applied to the frame at the jobsite after the frame is installed.

    Wood Casing: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    (AK frames are not available with glazing)

    ADJUSTABLE KERFED FRAME (AK-Series) – Pair | Color Options

    STOCK FINISH
    Timely carries a large raw materials inventory of Stock finishes.
    Primed

    HIGH DEFINITION WHITE



    ADJUSTABLE KERFED FRAME (AK-Series) PAIR | Frame ProfilesIcon AK Series Large

    Frame Profile for Adjustable Kerfed Frame

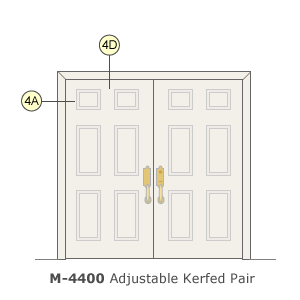

    ADJUSTABLE KERFED FRAME (AK-Series) – Pair | Elevations

    Click to enlarge drawings




    ADJUSTABLE KERFED FRAME (AK-Series) – Pair | Details

     Detail 4A Jamb Hinge Side - Adjustable Kerfed Detail 4D Header - Adjustable Kerfed Detail 4E1 Header with Reg. Closure - Adjustable Kerfed Detail 4E2 Header with P.A. Closure - Adjustable Kerfed

    ADJUSTABLE KERFED FRAME (AK-Series) – Pair

    PDF Image Thumb Adjustable Kerfed - Pair Download File in Adobe Acrobat Format PDF DOWNLOAD Adjustable Kerfed-Pair.pdf
    To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
