ADJUSTABLE FRAME (A-Series) SINGLE


    ADJUSTABLE FRAME (A-Series) – Single | Related Information

    ADJUSTABLE FRAME (A-Series) – Single | Fire Rating

    Icon for Fire Rating FIRE RATING

    JAMB DEPTH RANGE 45, 90 Minute GENERAL INFORMATION

    Min. Jamb Depth:


    3 3/4"



    Max. Jamb Depth:

    9 1/8"

    Max. Door Width:

    4' – 0"



    Max. Door Height:

    8' – 0"



    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recomended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood, Aluminum or PVC casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Single frames must be prepared for strike or reinforced with (TA-12) for a rim exit device strike.
    7. Embossed WHI 90 min. label is available for Primer Galvanized Frames only.
    8. Metal 90 min. label riveted to frame is available.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    ADJUSTABLE FRAME (A-Series) – Single | Rough Openings

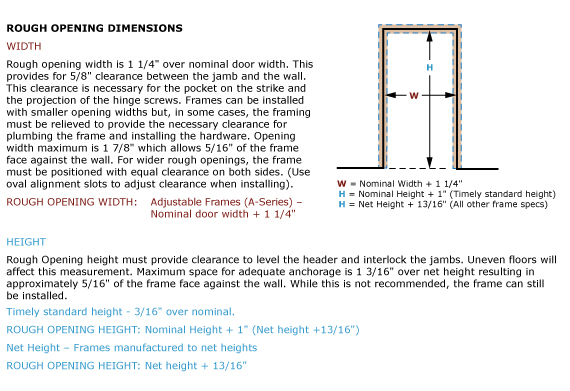

    ROUGH OPENING DIMENSION Rough Opening Classic Single/Dutch - Rough Opening
    WIDTH

    Rough opening width is 1 1/4" over nominal door width. This provides for 5/8" clearance between the jamb and the wall. This clearance is necessary for the pocket on the strike and the projection of the hinge screws. Frames can be installed with smaller opening widths but, in some cases, the framing must be relieved to provide the necessary clearance for plumbing the frame and installing the hardware. Opening width maximum is 1 7/8" which allows 5/16" of the frame face against the wall. For wider rough openings, the frame must be positioned with equal clearance on both sides. (Use oval alignment slots to adjust clearance when installing)

    ROUGH OPENING WIDTH: Standard Frames (A-Series) –
    Nominal door width + 1 1/4"

    HEIGHT

    Rough Opening height must provide clearance to level the header and interlock the jambs. Uneven floors will affect this measurement. Maximum space for adequate anchorage is 1 3/16" over net height resulting in approximately 5/16" of the frame face against the wall. While this is not recommended, the frame can still be installed.


    Timely standard height – 3/16" over nominal.
    ROUGH OPENING HEIGHT: Nominal Height + 1" (Net height +13/16")
    Net Height – Frames manufactured to net heights
    ROUGH OPENING HEIGHT: Net height + 13/16"
    Download Adjustable – Single | Rough Opening image


    ADJUSTABLE FRAME (A-Series) – Single | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame. Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    ADJUSTABLE FRAME (A-Series) – Single | Color Options



    PRE-MATCHED RAL FINISHES (Powder Coated)

    Timely uses the Sherwin-Williams RAL polyester powder coatings on our (A-Series) Adjustable Frames, which results in consistent and long-lasting finishes. The Timely Adjustable (A-Series) frames can optionally be finished using any of the available Sherwin-Williams RAL powder coatings.  Consult factory for pricing and lead times.

    The Sherwin-Williams RAL powder coatings are currently available in 188 vibrant colors.  The current selection of colors can be found on the Sherwin-Williams website.  Note: The color chart will open in a new window or tab.

    STANDARD FINISHES

    Browntone Chip   Western white Chip
    BROWNTONE
    (SC101)
      WESTERN WHITE
    (SC107)

    Autumn Brown Chip   alumatone Chip
    AUTUMN BROWN
    (SC102)
      ALUMATONE
    (SC108)

    black chip   Primer Chip
    BLACK
    (SC103)
      PRIMER
    (SC109)

    Stone Gray Chip
    STONE GRAY
    (SC106)



    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified.  Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department.  Colors & price subject to change.



    ADJUSTABLE FRAME (A-Series) | Frame ProfilesIcon A Series Large

    Click to enlarge drawings

    A-SERIES 18 GAUGE CRS
    1 3/4" Door
    Adjustable - Frame Profile (54A) Adjustable - Frame Profile (73A)
    Adjustable - Frame Profile (83A) Adjustable - Frame Profile (91A)
      NOTES: 1. Mullions and Sidelights are not avaliable for A-Series frames.        2. Profiles are shown with TA-8 Casing for example only.

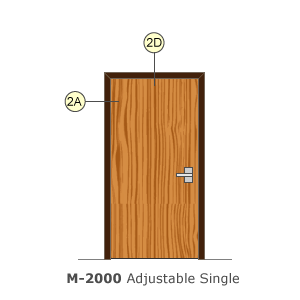

    ADJUSTABLE FRAME (A-Series) – Single | Elevations

    Click to enlarge drawings

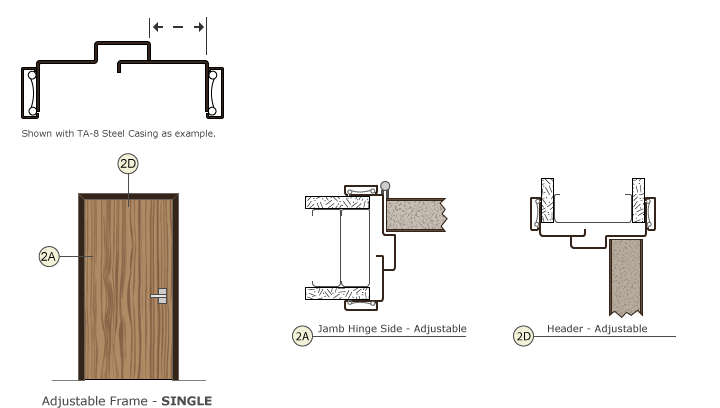

    ADJUSTABLE FRAME (A-Series) – Single | Details

    Click to enlarge drawings

    ADJUSTABLE FRAME (A-Series) – Single


    PDF Image Thumb Adjustable Single Download File in Adobe Acrobat Format PDF DOWNLOAD Adjustable – Single.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
