ADJUSTABLE FRAME (A-SERIES) PAIR
Adjustable Pair Door Frame Drawings

    ADJUSTABLE FRAME (A-Series) – Pair | Related Information

    ADJUSTABLE FRAME (A-Series) – Pair | Fire Rating

    Icon for Fire Rating FIRE RATING

    JAMB DEPTH RANGE 45, 90 Minute GENERAL INFORMATION
    Min. Jamb Depth:

    3 3/4"



    Max. Jamb Depth:

    9 1/8"

    Max. Width:

    8' – 0"



    Max. Height:

    8' – 0"





    1. All openings approved for Positive and Neutral pressure unless otherwise noted.
    2. All ratings apply to steel stud, wood stud, or masonry construction.
    3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
    4. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
    5. Wood, Aluminum or PVC casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
    6. Embossed WHI 90 min. label is available for Primer Galvanized Frames only.
    7. Metal 90 min. label riveted to frame is available.

    View minimum screw length here



    All dimensions shown are inside dimensions – net door opening size.



    Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

    ADJUSTABLE FRAME (A-Series) – Pair | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Classic Pair - Rough Opening
    WIDTH

    For a pair of doors, the rough opening with is 1 1/4" larger than the total nominal width of the doors plus the width of any astragal mounted between the doors.

    Width is sum of the nominal width of both doors leaves plus the astragal if it is mounted between the doors
    ROUGH OPENING: Nominal Door width(s) + astragal width (if mounted between the doors) + 1 1/4"
    HEIGHT

    For a pair of doors, the rough opening height is 1" over nominal height or 13/16" over net height. Since Timely standard frames are actually 3/16" longer than the nominal height (Timely 7'0" frames are actually 7'0 3/16" long).

    Height is the inside dimension of the frame
    ROUGH OPENING: Net door height plus 13/16"
    Download Adjustable – Pair | Rough Opening image



    ADJUSTABLE FRAME (A-Series) – Pair | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    ADJUSTABLE FRAME (A-Series) – Pair | Color Options



    PRE-MATCHED RAL FINISHES (Powder Coated)

    Timely uses the Sherwin-Williams RAL polyester powder coatings on our (A-Series) Adjustable Frames, which results in consistent and long-lasting finishes. The Timely Adjustable (A-Series) frames can optionally be finished using any of the available Sherwin-Williams RAL powder coatings.  Consult factory for pricing and lead times.

    The Sherwin-Williams RAL powder coatings are currently available in 188 vibrant colors.  The current selection of colors can be found on the Sherwin-Williams website.  Note: The color chart will open in a new window or tab.

    STANDARD FINISHES

    Browntone Chip   Western white Chip
    BROWNTONE
    (SC101)
      WESTERN WHITE
    (SC107)

    Autumn Brown Chip   alumatone Chip
    AUTUMN BROWN
    (SC102)
      ALUMATONE
    (SC108)

    black chip   Primer Chip
    BLACK
    (SC103)
      PRIMER
    (SC109)

    Stone Gray Chip
    STONE GRAY
    (SC106)



    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified.  Touch-up paint available upon request, colors
    may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department.  Colors & price subject to change.



    ADJUSTABLE FRAME (A-Series) | Frame ProfilesIcon A Series Large

    Click to enlarge drawings

    A-SERIES 18 GAUGE CRS
    1 3/4" Door

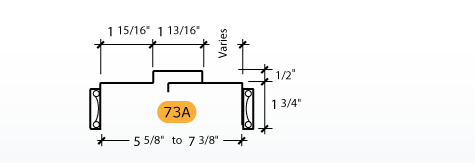

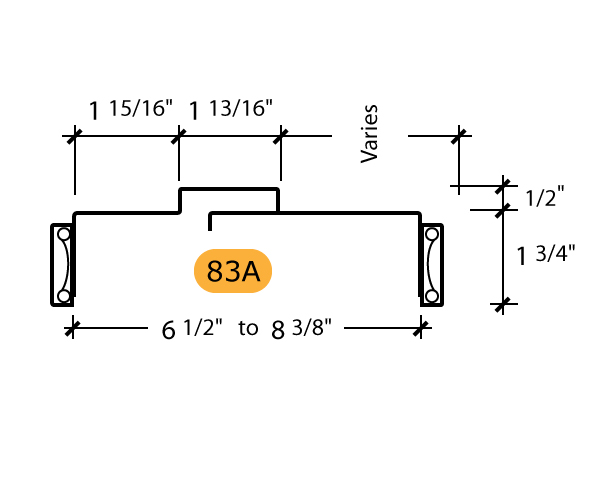

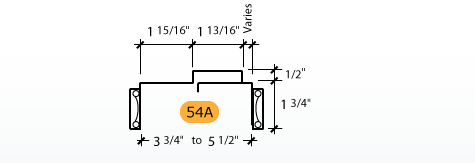

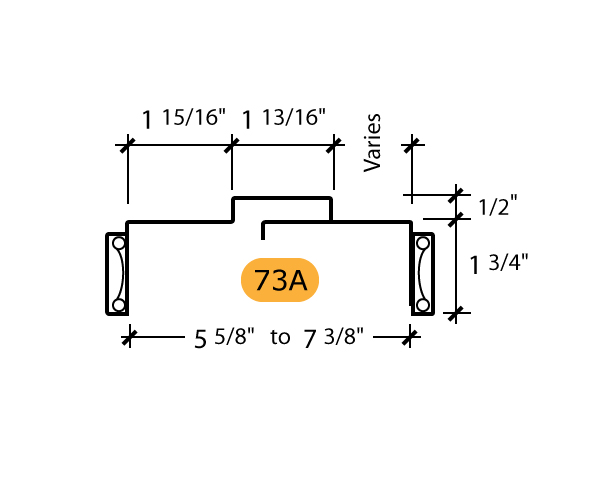

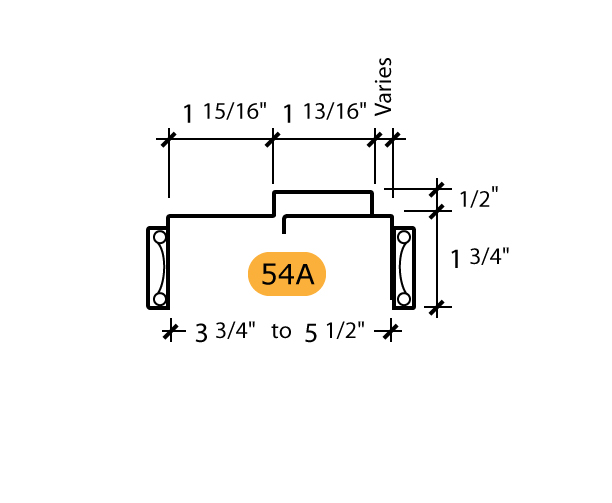

    Adjustable - Frame Profile (54A) Adjustable - Frame Profile (73A)

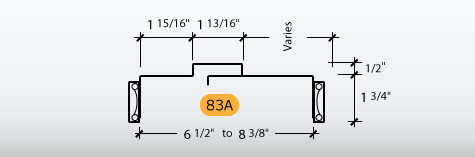

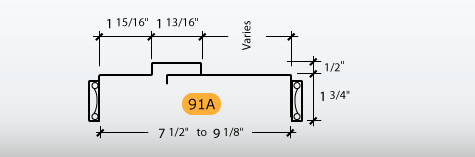

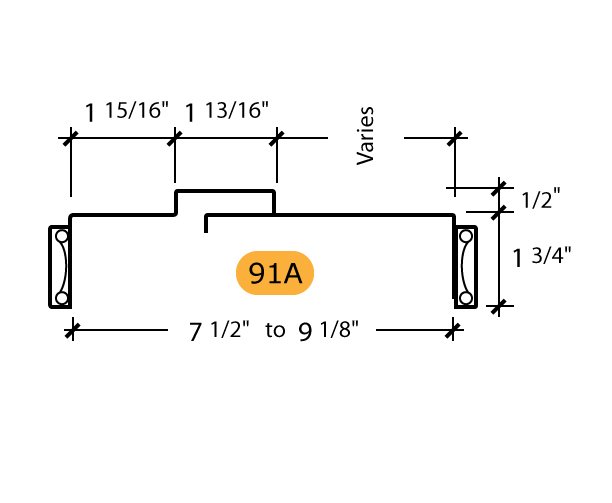

    Adjustable - Frame Profile (83A) Adjustable - Frame Profile (91A)
      NOTES: 1. Mullions and Sidelights are not avaliable for A-Series frames.        2. Profiles are shown with TA-8 Casing for example only.

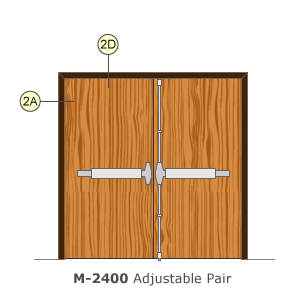

    ADJUSTABLE FRAME (A-Series) – Pair | Elevations

    Click to enlarge drawings

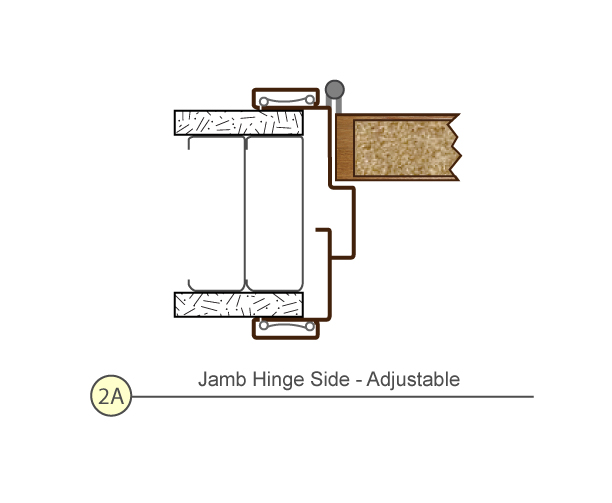

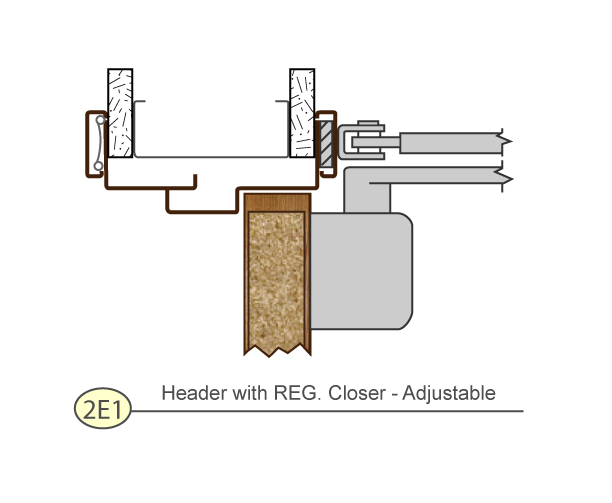

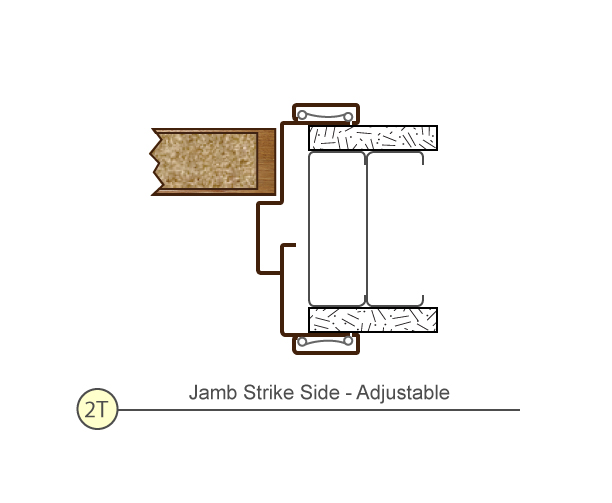

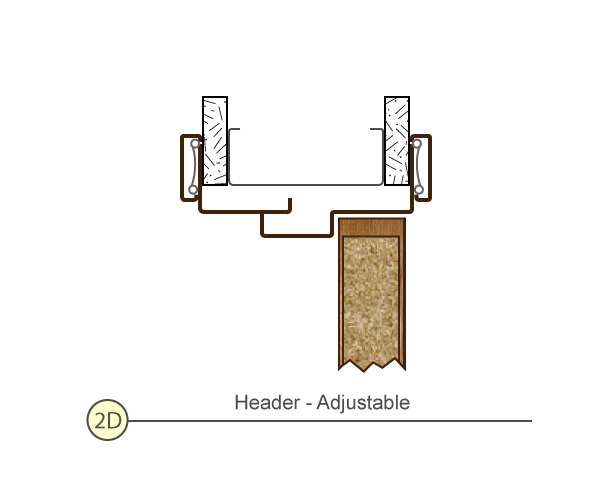

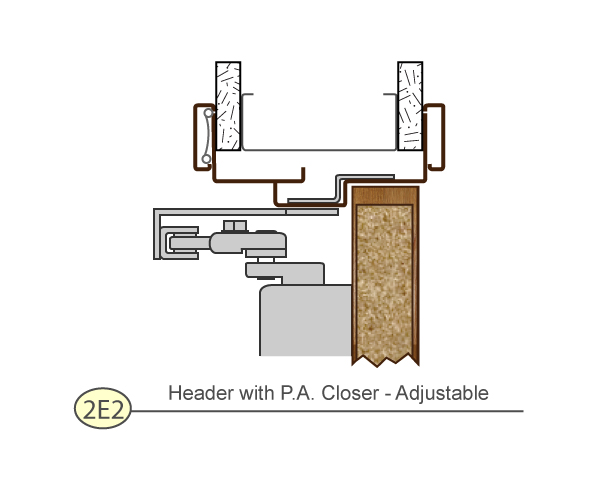

    ADJUSTABLE FRAME (A-Series) – Pair | Details

    Click to enlarge drawings

    ADJUSTABLE FRAME (A-Series) – Pair

    PDF Image Thumb Adjustable Pair Download File in Adobe Acrobat Format PDF DOWNLOAD Adjustable – Pair.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
