NOTE: When using this chart for premachining door measurements, reduce the A & D dimensions 3/32″ each for door clearance.

Prefit Door Specifications for 435

*

*Additional clearance is required for Thresholds and various

floor conditions.

FOR SPECIFICATIONS NOT SHOWN, PLEASE CONSULT OFFICE. PLEASE SPECIFY IF USING COMMERCIAL OR RESIDENTIAL WEIGHT HINGES.

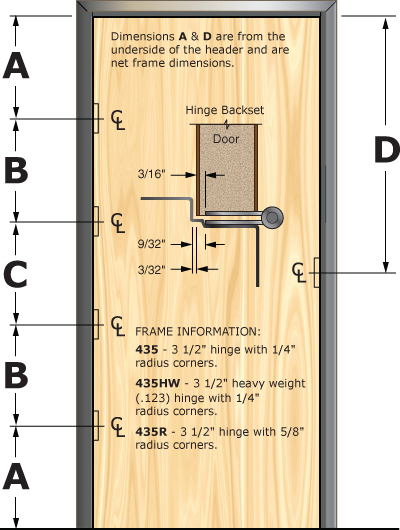

NET FRAME DIMENSIONS
+HEIGHT A B C D
6-0 10-3/32 17-1/4 17-1/2 32-3/32
6-8 10-3/32 20 20 40-3/32*
6-9 10-3/32 20-1/4 20-1/2 41-3/32
6-9 10-3/32 20-1/4 20-1/2 40-19/32*
6-10 10-3/32 20-1/2 21 42-3/32
7-0 10-3/32 21-1/4 21-1/2 44-3/32
7-0 10-3/32 21-1/4 21-1/2 42-3/32*
7-2 10-3/32 22 22 46-3/32
7-4 10-3/32 22-1/2 23 48-3/32
7-6 10-3/32 23-1/4 23-1/2 50-3/32
7-8 10-3/32 24 24 52-3/32
7-10 10-3/32 24-1/2 25 54-3/32
8-0 10-3/32 25-1/4 25-1/2 56-3/32
8-2 10-3/32 26 26 58-3/32
8-4 10-3/32 26-1/2 27 60-3/32
8-6 10-3/32 27-1/4 27-1/2 62-3/32
8-8 10-3/32 28 28 64-3/32
8-10 10-3/32 28-1/2 29 66-3/32
9-0 10-3/32 29-1/4 29-1/2 68-3/32
9-4 10-3/32 30-1/2 31 72-3/32
9-8 10-3/32 32 32 76-3/32
10-0 10-3/32 33-1/4 33-1/2 80-3/32
+ Frame Heights are 3/16″ longer than callout door height unless ordered net (3/32″ top, 3/32″ bottom for clearance).
Handing Information: To establish handing always Push the door away from you.

*Reversible – Frame can be used as Left or Right Hand,   swing in our out.
