NOTE: When using this chart for premachining door measurements, reduce the A & E dimensions 3/32″ each for door clearance.

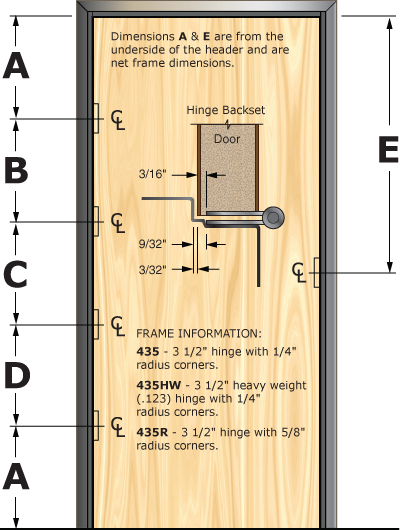

Prefit Door Illustration 435D

*Additional clearance is required for Thresholds and various

floor conditions.

FOR SPECIFICATIONS NOT SHOWN, PLEASE CONSULT OFFICE. PLEASE SPECIFY IF USING COMMERCIAL OR RESIDENTIAL WEIGHT HINGES.

NET FRAME DIMENSIONS
+HEIGHT A B C D E
6-0 4-27/32 22 10-1/2 30 36-3/32
6-8 4-27/32 30 10-1/2 30 44-3/32
6-9 4-27/32 31 10-1/2 30 45-3/32
6-10 4-27/32 32 10-1/2 30 46-3/32
7-0 4-27/32 34 10-1/2 30 48-3/32
7-2 4-27/32 36 10-1/2 30 50-3/32
7-4 4-27/32 38 10-1/2 30 52-3/32
7-6 4-27/32 40 10-1/2 30 54-3/32
7-8 4-27/32 42 10-1/2 30 56-3/32
7-10 4-27/32 44 10-1/2 30 58-3/32
8-0 4-27/32 46 10-1/2 30 60-3/32
8-2 4-27/32 48 10-1/2 30 62-3/32
8-4 4-27/32 50 10-1/2 30 64-3/32
8-6 4-27/32 52 10-1/2 30 66-3/32
8-8 4-27/32 54 10-1/2 30 68-3/32
8-10 4-27/32 56 10-1/2 30 70-3/32
9-0 4-27/32 58 10-1/2 30 72-3/32
9-4 4-27/32 62 10-1/2 30 76-3/32
9-8 4-27/32 66 10-1/2 30 80-3/32
10-0 4-27/32 70 10-1/2 30 84-3/32
+ Frame Heights are 3/16″ longer than callout door height unless ordered net (3/32″ top, 3/32″ bottom for clearance).
Handing Information: To establish handing always Push the door away from you.

*Reversible – Frame can be used as Left or Right Hand,   swing in our out.
