PREFIT SPECIFICATIONS

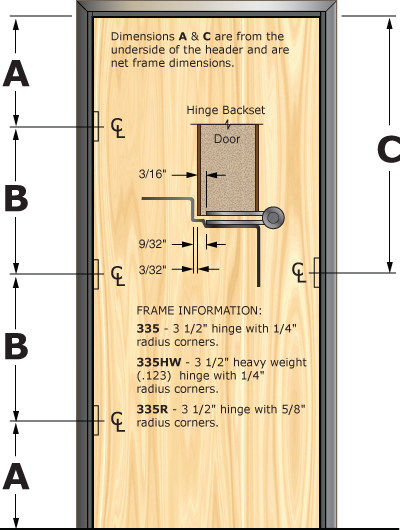

Frame Hinge and Strike Locations 1 3/8″ with 3 Each 3 1/2″ Hinges
335
NOTE: When using this chart for premachining door measurements, reduce the A & C dimensions 3/32″ each for door clearance.
click here Prefit Specifications (335) – print layout
*
*Additional clearance is required for Thresholds and various
floor conditions.
FOR SPECIFICATIONS NOT SHOWN, PLEASE CONSULT OFFICE. PLEASE SPECIFY IF USING COMMERCIAL OR RESIDENTIAL WEIGHT HINGES.
| NET FRAME DIMENSIONS | |||||
| +HEIGHT | A | B | C | ||
| 5-0 | 10-3/32 | 20 | 20-3/32 | ||
| 5-1 | 10-3/32 | 20-1/2 | 21-3/32 | ||
| 5-2 | 10-3/32 | 21 | 22-3/32 | ||
| 5-4 | 10-3/32 | 22 | 24-3/32 | ||
| 6-0 | 10-3/32 | 26 | 32-3/32 | ||
| 6-8 | 10-3/32 | 30 | 40-3/32* | ||
| 6-9 | 10-3/32 | 30-1/2 | 41-3/32 | ||
| 6-9 | 10-3/32 | 30-1/2 | 40-19/32* | ||
| 7-0 | 10-3/32 | 32 | 44-3/32 | ||
| 7-0 | 10-3/32 | 32 | 42-3/32* | ||
| 7-4 | 10-3/32 | 34 | 48-3/32 | ||
| 7-6 | 10-3/32 | 35 | 50-3/32 | ||
| 7-8 | 10-3/32 | 36 | 52-3/32 | ||
| 7-10 | 10-3/32 | 37 | 54-3/32 | ||
| 8-0 | 10-3/32 | 38 | 56-3/32 | ||
| 8-4 | 10-3/32 | 40 | 60-3/32 | ||
| 8-6 | 10-3/32 | 41 | 62-3/32 | ||
| 8-8 | 10-3/32 | 42 | 64-3/32 | ||
| 8-10 | 10-3/32 | 43 | 66-3/32 | ||
| 9-0 | 10-3/32 | 44 | 68-3/32 | ||
| 10-0 | 10-3/32 | 50 | 80-3/32 | ||
| + Frame Heights are 3/16″ longer than callout door height unless ordered net (3/32″ top, 3/32″ bottom for clearance). | |||||
Handing Information: To establish handing always Push the door away from you.
*Reversible – Frame can be used as Left or Right Hand, swing in our out. |
|||||
