NOTE: When using this chart for premachining door measurements, reduce the A & C dimensions 3/32″ each for door clearance.

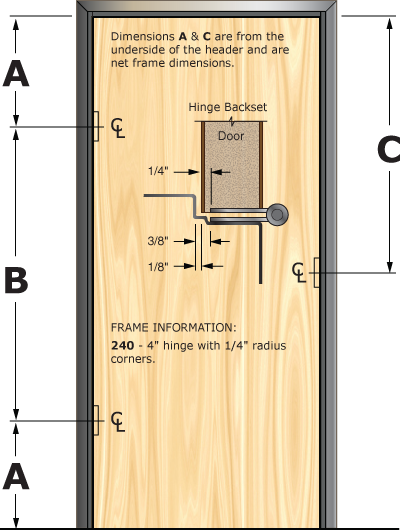

Prefit Door Illustration 240

*Additional clearance is required for Thresholds and various

floor conditions.

FOR SPECIFICATIONS NOT SHOWN, PLEASE CONSULT OFFICE.

NET FRAME DIMENSIONS
+HEIGHT A B C
3-0 10-11/32 15-1/2 18-3/32*
3-2 10-11/32 17-1/2 19-3/32*
3-6 10-11/32 21-1/2 21-3/32*
4-0 10-11/32 27-1/2 24-3/32*
4-2 10-11/32 29-1/2 25-3/32*
4-4 10-11/32 31-1/2 26-3/32*
4-6 10-11/32 33-1/2 27-3/32*
4-8 10-11/32 35-1/2 28-3/32*
4-10 10-11/32 37-1/2 29-3/32*
5-0 10-11/32 39-1/2 20-3/32
5-2 10-11/32 41-1/2 22-3/32
5-6 10-11/32 45-1/2 26-3/32
6-0 10-11/32 51-1/2 32-3/32
6-2 10-11/32 53-1/2 34-3/32
6-4 10-11/32 55-1/2 36-3/32
6-8 10-11/32 59-1/2 40-3/32*
6-9 10-11/32 60-1/2 41-3/32
6-9 10-11/32 60-1/2 40-19/32*
7-0 10-11/32 63-1/2 44-3/32
7-0 10-11/32 63-1/2 42-3/32*
7-2 10-11/32 65-1/2 46-3/32
7-4 10-11/32 67-1/2 48-3/32
+ Frame Heights are 3/16″ longer than callout door height unless ordered net (3/32″ top, 3/32″ bottom for clearance).
Handing Information: To establish handing always Push the door away from you.

*Reversible – Frame can be used as Left or Right Hand,   swing in our out.
