STEP 1: INSERT and EXPLODE the BLOCK you need into your drawing.
STEP 2: STRETCH as needed.
STEP 3: COPY the Rough Opening lines to the appropriate location and dimension as needed. (NOTE: The Rough Opening stretched with the elevation as it was being modified.)
Frame Elevations are drawn with aPolyline. Rough Openings are drawn with a Polyline.
|Elevations A – Frames with 1 3/4″ face||Timely ‘s casings that create a 1 3/4″ frame face|

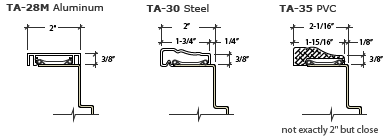

|Elevations B – Frames with 2″ face||Timely ‘s casings that create a 2″ frame face|
|NOTE: The elevation’s “over all” dimensions must be manually modified for wood casings that do not result in either a 1 3/4″ or 2″ face.|
