CLASSIC – PLAN PROFILES


  • Plan Profiles are saved as AutoCad 2010 files.
  • Plan Profiles are Dynamic Blocks with the ability to:
    1. Select from 6 different casing profiles, 1 example wood casing or no-casing.
    2. Select a valid wall size.
    3. Select a valid door width.

NOTE: Dimensions shown are part of the dynamic blocks and should not be manually adjusted. Dimensions are “annotative” and can be set in model space to (3" = 1' – 0" default), (6" = 1' – 0") and (1' – 0" = 1' – 0").

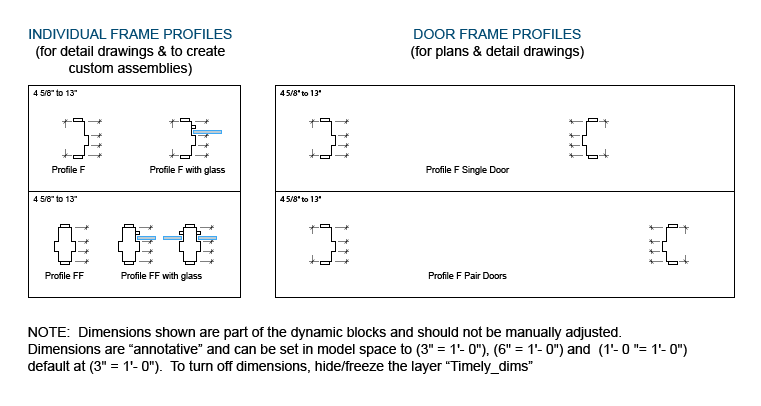

    Example of a downloaded CAD file for Profile F.

    1 3/8" Door

    Available in Both Door Sizes

    1 3/4" Door

    CAD Drawing Image for Classic Frame Profile

    Download Button

    Minimum order quantity of 100
    frames for Profiles B and I.
