ADJUSTABLE – PLAN PROFILES

  • Plan Profiles are saved as AutoCad 2010 files.
  • Plan Profiles are Dynamic Blocks with the ability to:
    1. Select from 6 different casing profiles, 1 example wood casing or no-casing.
    2. Select a valid wall size.

NOTE: Dimensions shown are part of the dynamic blocks and should not be manually adjusted. Dimensions are “annotative” and can be set in model space to (3" = 1' – 0" default), (6" = 1' – 0") and (1' – 0" = 1' – 0").

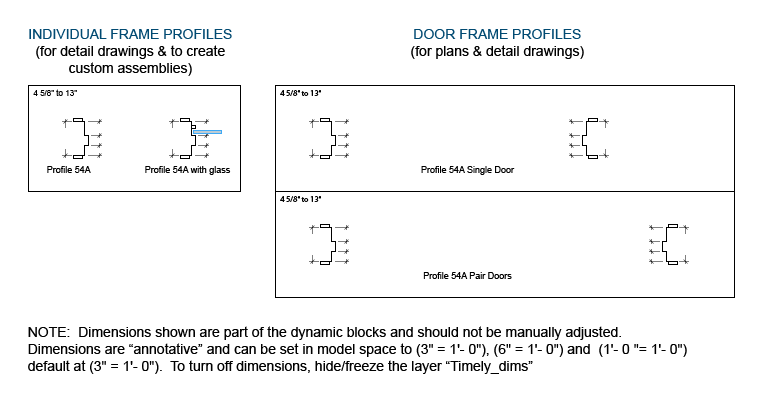

    Example of a downloaded CAD file for Profile 54A.

    ADJUSTABLE – FRAME PROFILES



    A SERIES 20 GAGE CRS
    1 3/4" Door
    A Profile 53A A Profile 73A  A Profile 91A
     Download Button Download Button  Download Button
    NOTES: 1. Mullions and Sidelights are not avalaible for A-Series frames.    2. Profiles are shown with TA-8 Casing for example only.
